10L/Min 120KW 20KHZ Industrial Induction Heater For Shaft Harden

10L/Min 120KW 20KHZ Industrial Induction Heater For Shaft Harden
10L/Min 120KW 20KHZ Industrial Induction Heater For Shaft Harden
10L/Min 120KW 20KHZ Industrial Induction Heater For Shaft Harden 10L/Min 120KW 20KHZ Industrial Induction Heater For Shaft Harden 10L/Min 120KW 20KHZ Industrial Induction Heater For Shaft Harden 10L/Min 120KW 20KHZ Industrial Induction Heater For Shaft Harden 10L/Min 120KW 20KHZ Industrial Induction Heater For Shaft Harden 10L/Min 120KW 20KHZ Industrial Induction Heater For Shaft Harden 10L/Min 120KW 20KHZ Industrial Induction Heater For Shaft Harden

Large Image :  10L/Min 120KW 20KHZ Industrial Induction Heater For Shaft Harden

Product Details:
Place of Origin: CHINA
Brand Name: GY
Certification: CE,SGS,FCC,ROHS
Model Number: GYT-120AB
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: plywood boxes packing
Delivery Time: 7~15days
Payment Terms: T/T, Western Union
Supply Ability: 300SET per month

10L/Min 120KW 20KHZ Industrial Induction Heater For Shaft Harden

Description
Control System: IGBT Application: Heating, Forging, Melting, Hardening And Etc
Heating Material: Metals Cooling: Water
Duty Cycle: 100% Work Principle: Electromagnetic Induction Heating
Frequency: 5~20KHZ HS CODE: 85144000
Work Power: 380V 3phase Condtion: Brand New
Warranty: One Year Warranty
High Light:

20KHZ Industrial Induction Heater

,

120KW Industrial Induction Heater

,

10L/Min Induction Heat Treatment Machine

China New Type High Efficiency Induction Heater For shaft Harden

Induction Hardening Machine,Induction Hardening Machine price,Induction Hardening Machine equipment,Induction Hardening Machine manufacture,Induction Hardening Machine companies.Induction Hardening Machine for sale



Our Induction Heater adopts the most advanced technology MOS-FET,IGBT frequency conversion control to ensure high efficiency and maximum out-put power.

Call us for money-saving,apply for heating,brazing,annealing,hardening,melting and so on.Benefit from our induction heating consultants nearly 20years experiences creating precision heating treatment solutions.



Application of Induction Heater:
A. Heating (hot forging, hot fitting and melting):
B. Heat Treatment (surface quench):
C. Welding (braze welding, silver soldering and brazing)
D. Annealing (tempering and modulation)



Advantage of induction heater:



  • Nearly 20 years experience, stable and goods performance
  • CE,SGC,FCC,ROSH certificated
  • Cooperated with GM,VOLVO,HONDA and so on.
  • Suitable for a large range, heating, quenching, forging, melting, soldering and so on.
  • Less environment pollution
  • High efficiency,high output&high reliability
  • Small size &light weight

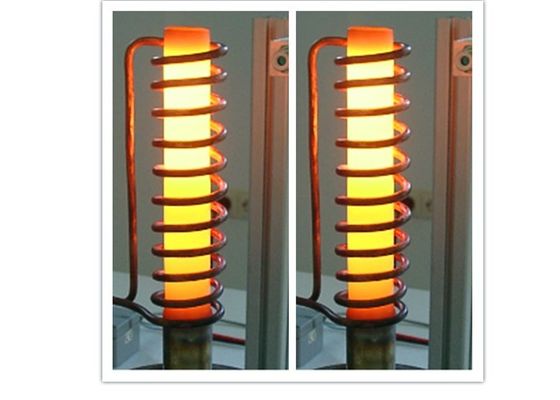

Induction Heating Work Principle

10L/Min 120KW 20KHZ Industrial Induction Heater For Shaft Harden 0

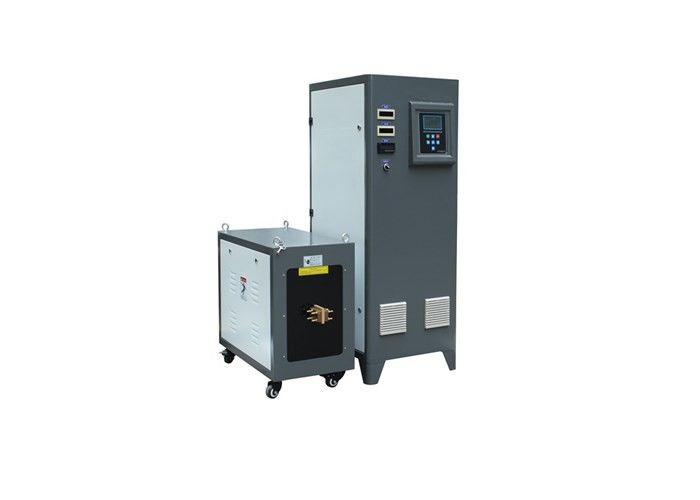

Induction Heater GYT-120AB Parameter:



Model GYT-120AB (Three phase)
work power 340V-430V
Maximum input current 180A
Output power 120KW
fluctuating frequency 5-20khz
output current 400-4000A
the flow rate of cooling water 0.08-0.16Mpa 10L/Min
water temperature protection point 50C
product size main : 830x550x1510mm
transformer : 950x420x780 mm
net weight main : 150gks
transformer : 100kgs



Delivery Time: within 7 workdays.
Shipping Term:By sea,By air,by express.

Extra accessories accept choose
1>Chiller
2>Customer design Coil
3>Infrared Thermometer
4>Back-up Electronic Boards
5>Forging Furnace,Melting Furnace,Hardening Fixture



10L/Min 120KW 20KHZ Industrial Induction Heater For Shaft Harden 1

10L/Min 120KW 20KHZ Industrial Induction Heater For Shaft Harden 2



10L/Min 120KW 20KHZ Industrial Induction Heater For Shaft Harden 3

Induction Heater Application

10L/Min 120KW 20KHZ Industrial Induction Heater For Shaft Harden 4



Induction Heater After service



Q: Why choose GuangYuan Company?
A: We are manufacture which had in this filed for nearly 20 years.No matter quality,

price,service,delivery time,we all have large advantage.

Q:How to choose suiteble machine?
A:You can tell us your application,need forging,hardening,welding,melting or other,

pass me workpiece material & size,Temperature requirement and heating time requirement.

Then we will recommend fit machine for you reference.

Q:How about the machine payment term&delivery time&Shipping term?
A: Our company payment term accept T/T,Western Union,L/C and so on.Small machine delivery

time is 3~7 workdays.Big machine delivery time 15~25 workdays.Shipping term accept EXW,FOB,

CIF and so on.

Q:How about the machine warranty?
A:Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free.
