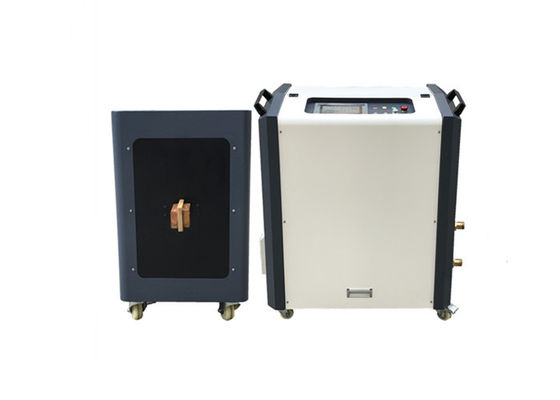

100KW 200KHZ Ultra High Frequency Induction Heating Machine IGBT

100KW 200KHZ Ultra High Frequency Induction Heating Machine IGBT
100KW 200KHZ Ultra High Frequency Induction Heating Machine IGBT
100KW 200KHZ Ultra High Frequency Induction Heating Machine IGBT 100KW 200KHZ Ultra High Frequency Induction Heating Machine IGBT 100KW 200KHZ Ultra High Frequency Induction Heating Machine IGBT 100KW 200KHZ Ultra High Frequency Induction Heating Machine IGBT 100KW 200KHZ Ultra High Frequency Induction Heating Machine IGBT

Large Image :  100KW 200KHZ Ultra High Frequency Induction Heating Machine IGBT

Product Details:
Place of Origin: CHINA
Brand Name: GY
Certification: CE,FCC,ROHS
Model Number: DSPGYH-100AB
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: plywood boxes packing
Delivery Time: 7~15days
Payment Terms: T/T, Western Union
Supply Ability: 300SET per month

100KW 200KHZ Ultra High Frequency Induction Heating Machine IGBT

Description
Control System: IGBT Application: Heating, Forging, Melting, Hardening And Etc
Heating Material: Metals Cooling: Water
Duty Cycle: 100% Work Principle: Electromagnetic Induction Heating
HS CODE: 85144000 Work Power: 380V 3phase
Condtion: Brand New Warranty: One Year Warranty
High Light:

200KHZ Ultra High Frequency Induction Heating Machine

,

100KW Ultra High Frequency Induction Heating Machine

,

IGBT Induction Heating Equipment

100KW 200KHZ Ultra High Frequency Induction Heating Machine



Guangyuan series new GYH series induction heating equipment adopts DSP+FPGA structure with full-digital high-efficiency and precise control technology, which can automatically track the resonant frequency and ensure that IGBT is always steady in any situation even ZCS or ZVS is the soft-switching state, which makes the IGBT work state optimal, its own power consumption is smaller, and the whole machine is more efficient. It completely solves the shortcomings of the analog circuit, and ensures the stability of the whole system. The external interface and simple man-machine interface make the connection between the equipment and the production line more convenient.



DSP full digital control products, according to different cooling methods, are divided into two categories: air-cooled and water-cooled; the internal components of the equipment are composed of The water circulation takes away the heat generated by the work of the components, which is the water-cooled type; and the internal components of the equipment are cooled by wind energy, which is the air-cooled type. This type is a new research and development process.



Indcution Heating Machine DSPGYH-100AB Parameter:



Model DSPGYH-100AB (Three phase)
work power 340V-430V
input current 150A
output power 100KW
fluctuating frequency 80-200KHZ
output current 400-4000A
the flow rate of cooling water 0.08-0.16Mpa 10L/Min
water temperature protection point 40C
product size main : 810x520x1020 mm
transformer : 850x420x750mm
net weight main : 110 kgs
transformer : 75 kgs


Delivery Time: within 7 workdays.
Shipping Term:By sea,By air,by express.

Extra accessories accept choose
1>Chiller
2>Customer design Coil
3>Infrared Thermometer
4>Back-up Electronic Boards
5>Forging Furnace,Melting Furnace,Hardening Fixture





Application Filed

Induction Welding

Induction Annealing

Induction Pre-heating

Induction Bolt Heating

Induction Brazing

Induction curing bonding

Induction straightening

Use induction heating to remove paint and coating

Forging

Melting



Advantages Compare with Traditional Analog Circuit Induction Heating Equipment



1. In terms of core control



For traditional analog power supplies, the parameters are determined by analog devices such as potentiometers. These devices are relatively affected by the environment, and temperature changes may cause parameter changes; the control process, data processing, and parameter storage of the DSP intelligent induction heating power supply are all in digital form. The environment change will not affect the calculation output process. Corresponding to the analog control system, the all-digital power supply has higher stability in different environments.



2. In terms of touch screen display



The DSP intelligent induction heating power supply displays the working status and working parameters of the equipment on the touch screen LCD, and the working details of the equipment are clear at a glance.



3. In terms of fault self-diagnosis and processing



The DSP intelligent induction heating power supply displays the fault location and the treatment method. When an error occurs or an alarm occurs in a special working condition, the touch screen will display the fault content. Click the help of the corresponding fault to find the corresponding fault solution. More than 90% of the common faults can be dealt with quickly by the operators, which greatly improves the production efficiency and reduces the dependence on the technical level of the operators.



4. In terms of intelligent protection system



Traditional analog power supplies only have simple protection functions such as overcurrent and overvoltage. The DSP intelligent induction heating power supply has a wealth of fault judgment and protection circuits. When the cooling water pressure is unstable, the temperature is too high, the three-phase power is missing, the cold workpiece touches the inductor (ground protection).



5. In terms of work efficiency



When the total power remains the same, the output voltage is only half of the ordinary series resonant machine, which is safer; the output current is doubled and the heating effect is better.



100KW 200KHZ Ultra High Frequency Induction Heating Machine IGBT 0

100KW 200KHZ Ultra High Frequency Induction Heating Machine IGBT 1

Induction Heater Application

100KW 200KHZ Ultra High Frequency Induction Heating Machine IGBT 2





Induction Hardening Machine After service



Q: Why choose GuangYuan Company?
A: We are manufacture which had in this filed for nearly 20 years.No matter quality,

price,service,delivery time,we all have large advantage.

Q:How to choose suiteble machine?
A:You can tell us your application,need forging,hardening,welding,melting or other,

pass me workpiece material & size,Temperature requirement and heating time requirement.

Then we will recommend fit machine for you reference.

Q:How about the machine payment term&delivery time&Shipping term?
A: Our company payment term accept T/T,Western Union,L/C and so on.Small machine delivery

time is 3~7 workdays.Big machine delivery time 15~25 workdays.Shipping term accept EXW,FOB,

CIF and so on.

Q:How about the machine warranty?
A:Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free.

100KW 200KHZ Ultra High Frequency Induction Heating Machine IGBT 3
