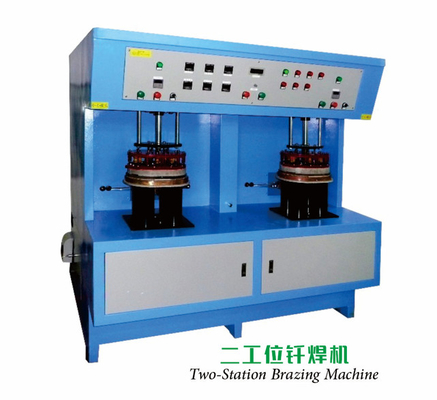

Three Phase Induction heating machine / Two Station Braze welding machine

China Three Phase Induction heating machine / Two Station Braze welding machine supplier

Large Image :  Three Phase Induction heating machine / Two Station Braze welding machine

Product Details:

Place of Origin: China
Brand Name: GY
Certification: CE, ROHS, SGS
Model Number: GY-60C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500set/month
Contact Now
Detailed Product Description

Three Phase Induction heating machine / Two Station Braze welding machine





Quick Details



Name

Three Phase Two Station Braze welding machine Induction heating machine 60KW



Application

Brazing welding

Work power

360V-520V

Out power

60KW

Model Number

GY-60C

Certificate

CE,SGS, ROHS





Technical Parameters



Type

GY-25C

GY-40C

GY-60C

GY-80C

Work power

Three phase 380V 50HZ

Three phase 380V 50HZ

Three phase 380V 50HZ

Three phase 380V 50HZ

The range of operating voltage

360V-520V

360V-520V

360V-520V

360V-520V

Output power

25KW

40KW

60KW

80KW

Fluctuating frequency

30-80KHZ

30-80KHZ

30-80KHZ

30-80KHZ

Output current

200-1200A

400-1800A

400-2400A

400-3200A

Brazing diameters

150mm

250mm

300mm

400mm







     Advantages:

  1. Energy saving and environmental protection
  2. High welding efficiency
  3. High quality welding: welding surface smooth, consistent welding quality, improve the overall quality of welding products
  4. Simple and easy operation, a few seconds to learn
  5. Low manufacturing cost, is about the traditional oxidation welding 1 / 4.



     Main Features:

  1. Three Phase Two Station Braze welding machine Induction heating machine 60KW​ adopts the latest MOSFET, IGBT power units and frequency conversion control techniques with high efficiency, low energy consumption and higher output power.
  2. With constant current and constant power control function to greatly optimize the heating process of metals, realize efficient and fast heating, and fully exert the superiority of the products.
  3. Power consumption is half of traditional electron tube high frequency induction heating equipments under the same conditions.
  4. With 100% load design, can work for continuous 24-hour a day. Infrared temperature detector can be equipped to realize the automatic control of temperature, improve heating quality and simplify manual operation.
  5. With heating-insulating-cooling three stages function setting, the heating and insulating time required can be get to accommodate to the batch and repeated heating situations.
  6. With multiple status display of overflow, over voltage, low water, phase failure and load malfunction, providing higher reliability and sustainability.
  7. Select power supply according to the power and frequency. The higher the frequency, the shallower the heating depth, and the lower the frequency, the better the diathermancy.
