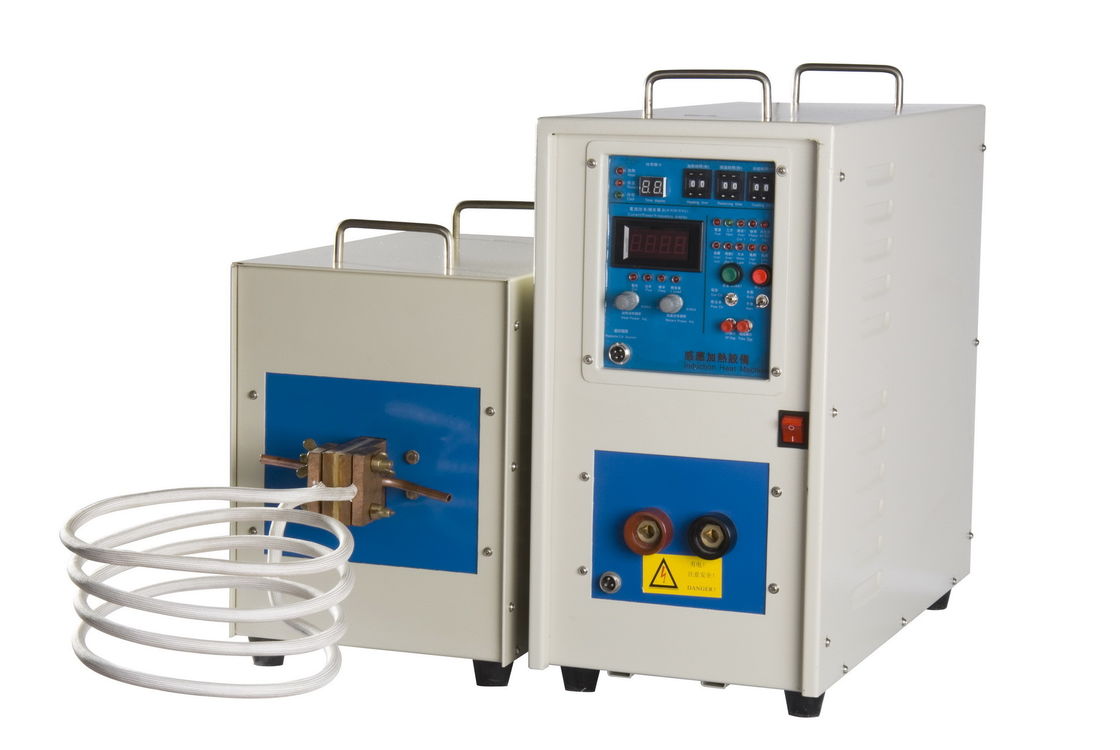

Customized High Frequency Induction Shaft Hardening Tool Machine 60KVA 30-80KHZ

Customized High Frequency Induction Shaft Hardening Tool Machine 60KVA 30-80KHZ
Customized High Frequency Induction Shaft Hardening Tool Machine 60KVA 30-80KHZ Customized High Frequency Induction Shaft Hardening Tool Machine 60KVA 30-80KHZ Customized High Frequency Induction Shaft Hardening Tool Machine 60KVA 30-80KHZ Customized High Frequency Induction Shaft Hardening Tool Machine 60KVA 30-80KHZ Customized High Frequency Induction Shaft Hardening Tool Machine 60KVA 30-80KHZ

Large Image :  Customized High Frequency Induction Shaft Hardening Tool Machine 60KVA 30-80KHZ

Product Details:
Place of Origin: CN
Brand Name: GY
Certification: CE, FCC, ROHS, SGS
Model Number: GY-60AB
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiation
Packaging Details: Ply-wooden box packing
Payment Terms: T/T
Supply Ability: 500SET PER MONTH

Customized High Frequency Induction Shaft Hardening Tool Machine 60KVA 30-80KHZ

Description
Heating Principle: Magnetic Induction Heating Application: Shaft Hardening
Name: Induction Hardening Furnace,Heat Treatment Machine,induction Gear Hardening Quenching Machine,cnc Induction Hardening Machine Tool,made In China High Frequency Induction Heater Type: IGBT Induction Furnace,Electric Type,Automatic,Induction Heating Machine,IGBT Induction Hardening Quenching Machine
Input Voltage: 50/60HZ,3 Phase 380Vac; 50-60Hz,three Phase 380v 50-60HZ Output Power: 45kw,60kw,100KVA,100kw,20~2000kW 20~750kW
High Light:

induction hardening machinery

,

high frequency induction hardening

Technical parameter :

Model GY-60AB (Three phase)
work power 340V-430V
input current 60A
Fluctuating output power 60KVA
fluctuating frequency 30-80KHZ
output current 400-2400A
the flow rate of cooling water 0.08-0.16Mpa 7.6L/Min
water temperature protection point 40C
product size main : 640x280x550 mm
transformer : 510x260x410 mm
net weight main : 37.5 kg
transformer : 32.5 kg



Heat Treatment (surface hardening):

It is mainly aims to change the rigidity of the metal materials through the heat treatment to work pieces. Detail applications are stated as follows:

1) Hardening for various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear (orchard shear).

2) Hardening for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, semi drive shaft, small shaft and fork.



3) Various electric tools, such as gear and axes.

4) Hardening for machine tools, such as lathe deck and guide rail.

5) Hardening for various hardware metal parts and machined parts, such as shaft, gear (chain wheel), cam, chuck and clamp etc.

6) Hardening for hardware molds, such as small-size mold, mold accessory and inner hole of mold.

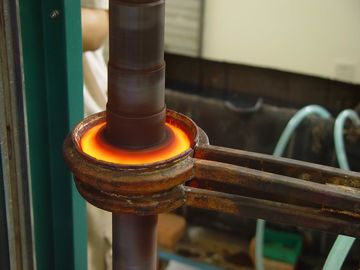

Customized High Frequency Induction Shaft Hardening Tool Machine 60KVA 30-80KHZ 0



Operating Principle of Induction Heating

Frequency conversion electromagnetic induction heating or induction heating for short is a method for heating metal materials by converting power frequency power supply into that of specific range based on the principle of electromagnetic induction. It is mainly applicable to the metal hot working, heat treatment, welding and melting. This type of heating technique is also applicable to packing industry (such as sealing of aluminum foil used in medicine and food industry), semiconductor material (such as extruded monocrystalline silicon and heated affixing metal parts for auto glass).

Basic components of induction heating system include induction coil, AC power source and work pieces. Induction coil can be fabricated into different shapes as per different heated objects. The coil is connected with the power source providing alternating current for coil. The alternating current possessed by the coil can create a alternating magnetic field passing through the work pieces to produce eddy flow as required by heating.

Deficiencies of Conventional Heating Modes

1. Conventional heating with such fuels as coal, gases, and oil has such deficiencies as serious pollution, atrocious working environment and serious hidden safety hazards.

2. Furthermore, coal, gas and oil are inadequate to perform fast and uniform heating, and are apt to incur deformation of work pieces, thick oxic horizon, poor quality, rough surface and high scrap rate, which can not ensure the competitive power of your products.

Advantages of Induction Heating Equipment

Fast heating: the minimum rate of heating is less than 1 second (rate of heating is available for adjustment and control).

Wide coverage of heating: it can be used to heat various metal parts (replace removable induction coil as per different operating switches).

Easy installation: it can be used once it is connected with power source, induction coil as well as water supply pipe and rising pipe; it is small in size and light in weight.

Easy operation: you can learn to operate it within several minutes.

Fast start-up: it can be started to perform heating operation on condition that water and power supply is available.

Low power consumption: As compared with conventional vacuum tube high frequency equipments, it can save the power by approximately 70%. The smaller the size of the work piece is, the lower power consumption would be.

High effectiveness: it has such features as uniform heating (it is applicable to adjust the spacing of the induction coil to ensure the appropriate temperature as required by each part of work piece), fast warming and limited oxic horizon, and can guard against any waste after annealing.

Comprehensive protection: it has such functions as overpressure, over-current, overheat and water shortage alarm indications as well as automatic control and protection.

Controllable temperature: it is applicable to control the temperature for heating work pieces as per the preset heating time, and thereby control the heating temperature at a certain technical point.

Small size and light weight: it has a weight of only several dozens of kilograms, of which, the limited floor space can effectively save the workshop space.

Sound operational environment: it is favorable for environmental protection, conservation of energy and safety operation, which is free of any noise, exhaust gas and dust.

Elimination of high voltage: it requires no step-up transformer which may produce approximately ten thousand voltage, and thus can ensure the maximum safety.

Comprehensive full load design: it can work continuously for 24 hours.
