IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden

IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden
IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden
IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden

Large Image :  IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden

Product Details:
Place of Origin: CHINA
Brand Name: GuangYuan
Certification: CE,FCC,ROHS
Model Number: GYSQ-TC-120AB
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: plywood boxes packing
Delivery Time: 7~15days
Payment Terms: T/T, Western Union
Supply Ability: 300SET per month

IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden

Description
Control System: IGBT Application: Crankshaft Heating
Heating Material: Metals Cooling: Water
Duty Cycle: 100% Work Principle: Electromagnetic Induction Heating
Frequency: 10~50KHZ HS CODE: 85144000
Work Power: 380V 3phase Warranty: One Year Warranty
High Light:

full digits Induction Heating Machine

,

Socket Harden Induction Heating Machine

,

IGBT Control Induction Heater Machine

IGBT Control Induction Heating Machine For Square Socket Harden
Induction Hardening Machine,Induction Hardening Machine price,Induction Hardening Machine equipment,Induction Hardening Machine manufacture,Induction Hardening Machine companies.Induction Hardening Machine for sale
Induction hardening is a process used for the surface hardening of steel and other alloy components. The parts to be heat treated are placed inside a water cooled copper coil and then heated above their transformation temperature by applying an alternating current to the coil. The alternating current in the coil induces an alternating magnetic field within the work piece, which if made from steel, caused the outer surface of the part to heat to a temperature above the transformation range. Parts are held at that temperature until the appropriate depth of hardening has been achieved, and then quenched in oil, or another media, depending upon the steel type and hardness desired. The core of the component remains unaffected by the treatment and its physical properties are those of the bar from which it was machined or preheat treated. The hardness of the case can be HRC 37 - 58. Carbon and alloy steels with a carbon content in the range 0.40 - 0.45% are most suitable for this process. In some cases, parts made from alloy steels such as 4320, 8620 or 9310, like steel and paper mill rolls, are first carburized to a required case depth and slow cooled, and then induction hardened. This is to realize the benefit of relatively high core mechanical properties, and surface hardness greater than HRC 60, which provides excellent protection.



Induction Heating Machine Application Filed
Induction Welding
Induction Annealing
Induction Pre-heating
Induction Bolt Heating
Induction Brazing
Induction curing bonding
Induction straightening
Use induction heating to remove paint and coating
Forging
Melting



Induction heating Machine advantages:

Energy saving
No physical contact and less maintenance.
Minimizes the time of heating. Therefore it reduce oxidation and decrease production time.
Easier cleaning processes afterwards
Reduces the heat affected area
Reduced risk causing a more pleasant work environment than conventional methods.
Possibility to automate welding processes which leads to an easier implementing and repetitive process



Induction Heating Machine Equipment GYSQ-TC-120AB Parameter


Model GYSQ-TC -120AB (Three phase)
work power 340V-430V
Maximum input current 180A
Output power 120KW
fluctuating frequency 10-50khz
output current 400-4000A
the flow rate of cooling water 0.08-0.16Mpa 10L/Min
water temperature protection point 50C
product size main : 770x550x1510mm
transformer : 870x430x750 mm
net weight main : 150gks
transformer : 120kgs


Delivery Time: within 7 workdays.
Shipping Term:By sea,By air,by express.


Extra accessories accept choose
1>Chiller
2>Customer design Coil
3>Infrared Thermometer
4>Back-up Electronic Boards
5>Forging Furnace,Melting Furnace,Hardening Fixture




Induction Heater Power Require depends on following factors :
» Mass of work piece » Material properties of work piece
» Temperature increase you require » Heating time require
» Effectiveness of coil design » Comprehensive full load design
» Any heat loss during heating process



IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden 0



IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden 1


IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden 2


IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden 3

IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden 4

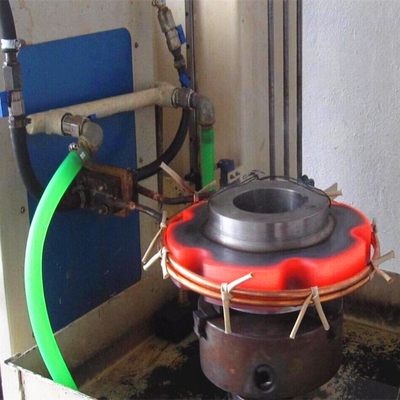

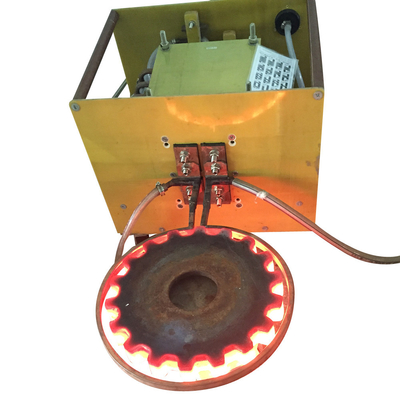

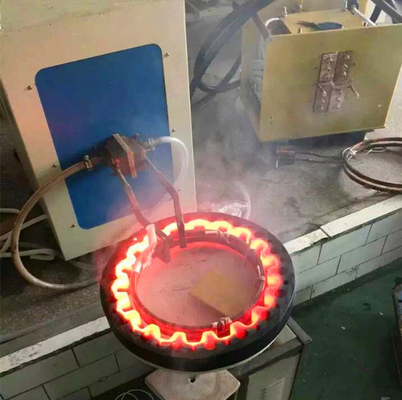

Induction Heater Application


Induction Heater After service

Q: Why choose GuangYuan Company?
A: We are manufacture which had in this filed for nearly 20 years.No matter quality,

price,service,delivery time,we all have large advantage.
Q:How to choose suiteble machine?
A:You can tell us your application,need forging,hardening,welding,melting or other,

pass me workpiece material & size,Temperature requirement and heating time requirement.
Then we will recommend fit machine for you reference.
Q:How about the machine payment term&delivery time&Shipping term?
A: Our company payment term accept T/T,Western Union,L/C and so on.Small machine delivery

time is 3~7 workdays.Big machine delivery time 15~25 workdays.Shipping term accept EXW,FOB,
CIF and so on.
Q:How about the machine warranty?
A:Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free.
