IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden

IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden
IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden
IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden

Large Image :  IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden

Product Details:
Place of Origin: CHINA
Brand Name: GuangYuan
Certification: CE,FCC,ROHS
Model Number: GYSQ-TC-120AB
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: plywood boxes packing
Delivery Time: 7~15days
Payment Terms: T/T, Western Union
Supply Ability: 300SET per month

IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden

Description
Control System: IGBT Application: Crankshaft Heating
Heating Material: Metals Cooling: Water
Work Principle: Electromagnetic Induction Heating Frequency: 10~50KHZ
Work Power: 380V 3phase Warranty: One Year Warranty
High Light:

IGBT Control Induction Harden Heating Machine

,

Induction Harden Heating Machine Energy Saving

,

Induction Harden Heating Machine 50KHZ

IGBT Control Induction Heating Machine For Square Socket Harden
Induction Hardening Machine,Induction Hardening Machine price,Induction Hardening Machine equipment,Induction Hardening Machine manufacture,Induction Hardening Machine companies.Induction Hardening Machine for sale
Induction hardening is a process used for the surface hardening of steel and other alloy components. The parts to be heat treated are placed inside a water cooled copper coil and then heated above their transformation temperature by applying an alternating current to the coil. The alternating current in the coil induces an alternating magnetic field within the work piece, which if made from steel, caused the outer surface of the part to heat to a temperature above the transformation range. Parts are held at that temperature until the appropriate depth of hardening has been achieved, and then quenched in oil, or another media, depending upon the steel type and hardness desired.





Application of Induction Heating Equipment

1, Heating (hot forging, hot fitting and smelting):

1) Hot forging aims to fabricate the work pieces of certain temperature (different materials require different temperatures) into other shapes through forging press with the help of punch press, forging machine or other equipments, for instances, hot extrusion of watch case, watch flan, handle, mold accessory, kitchen and table ware, art ware, standard part, fastener, fabricated mechanical part, bronze lock, rivet, steel pin and pin.

2) Hot fitting refers to the connection of different metals or metals with nonmetals through the heating based on the principle of hot expansion or hot smelting, for instances, embedded welding of copper core of computer radiator with aluminum sheet and speaker web, compound of steel and plastic tube, sealing of aluminum foil (tooth paste peel), motor rotor and sealing of tubular electric heating element.

3) Smelting mainly aims to melt the metal into liquid by using the high temperature, which is mainly applicable to the smelting of iron, steel, copper, aluminum, zinc as well as various noble metals.

2, Heat Treatment (surface quench):

It is mainly aims to change the rigidity of the metal materials through the heat treatment to work pieces. Detail applications are stated as follows:

1) Quench for various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear (orchard shear).

2) Quench for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, semi drive shaft, small shaft and fork.



3) Various electric tools, such as gear and axes.

4) Quench for machine tools, such as lathe deck and guide rail.

5) Quench for various hardware metal parts and machined parts, such as shaft, gear (chain wheel), cam, chuck and clamp etc.

6) Quench for hardware molds, such as small-size mold, mold accessory and inner hole of mold.

3, Welding (braze welding, silver soldering and brazing)

It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material or different materials.

1) Welding of various hardware cutting tools, such as diamond tool, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit.

2) Welding of various hardware mechanical gadget: Silver soldering and brazing of metals of the same variety or different varieties, such as hardware toilet and kitchen products, refrigerating copper fitting, lamp decoration fitting, precision mold fitting, hardware handle, eggbeater, alloy steel and steel, steel and copper as well as copper and copper.

3) Compound pot bottom welding is mainly applicable to the braze welding of circular, square as well as other irregular plain pot bottom. It is also applicable to plain braze welding of other metals.

4) Welding of heating disc of electric hot-water kettle mainly refers to the braze welding of stainless steel flat base, aluminum sheet and tubular electric heating elements of various forms.

4, Annealing (tempering and modulation):

1) Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.

2) Annealing of various other metal work pieces, such as golf ball head, cue, brass lock, hardware copper fitting, kitchen knife handle, blade, aluminum pan, aluminum pail, aluminum radiator and various aluminum products.



IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden 0



Induction heating Machine advantages:

Energy saving
No physical contact and less maintenance.
Minimizes the time of heating. Therefore it reduce oxidation and decrease production time.
Easier cleaning processes afterwards
Reduces the heat affected area
Reduced risk causing a more pleasant work environment than conventional methods.
Possibility to automate welding processes which leads to an easier implementing and repetitive process

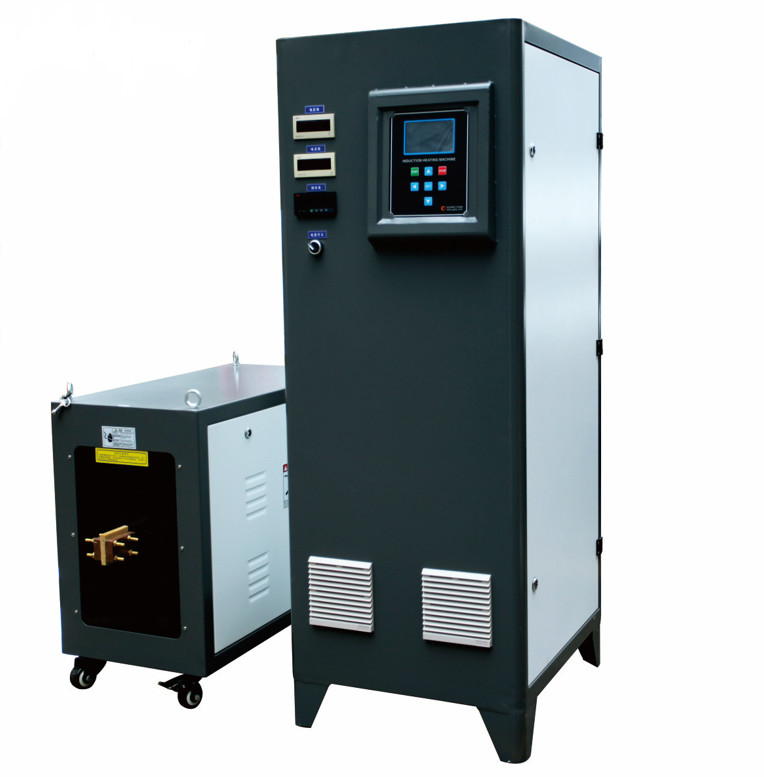

Induction Heating Machine Equipment GYSQ-TC-120AB Parameter


Model GYSQ-TC -120AB (Three phase)
work power 340V-430V
Maximum input current 180A
Output power 120KW
fluctuating frequency 10-50khz
output current 400-4000A
the flow rate of cooling water 0.08-0.16Mpa 10L/Min
water temperature protection point 50C
product size main : 770x550x1510mm
transformer : 870x430x750 mm
net weight main : 150gks
transformer : 120kgs


Delivery Time: within 7 workdays.
Shipping Term:By sea,By air,by express.





Induction Heater Power Require depends on following factors :
» Mass of work piece » Material properties of work piece
» Temperature increase you require » Heating time require
» Effectiveness of coil design » Comprehensive full load design
» Any heat loss during heating process



IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden 1

IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden 2
