Product Details:
|
| After Service: | Engineer Available To Service Machine Oversea | Rated Load: | 100% |
|---|---|---|---|
| Heating Princeple: | Magnetic Induction Heating | Warranty: | 1 Year,one Year Free Replacment Spare Parts,12 Months |
| Oscillation Frequency: | 10-35khz,30-80KHZ,18~25KHZ,10-50 KHZ (Customized) | Type: | IGBT Induction Furnace,Electric Type,Automatic,Induction Heating Machine,IGBT Induction Hardening Quenching Machine |
| High Light: | induction hardening machinery,high frequency induction hardening |
||

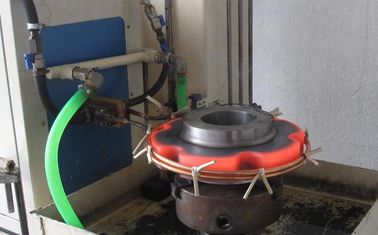

Induction hardening machine, quenching machine for Gear hardening, shaft hardening tool
Major Features
Machine tool adopting immersion and spray cooling means is sued in combination with high and intermediate frequency induction equipments, which is applicable to the heating and tempering for such work pieces as shafts, gears, discs and rods. This machine belongs to the semi-automatic induction heater adopting hydraulic drive and electrical control, which has manual, inching and automatic functions as required by precise positioning and easy operation.
Technical Parameter :
| Model | GYPLC-1200 | GY-PLC/CNC-1500 | GY-PLC/CNC-2000 | GY-PLC/CNC-3000 |
| Max heating diameter | ≤ ᴓ200mm | ≤ ᴓ350mm | ≤ ᴓ400mm | ≤ ᴓ600mm |
| Max heating length | 1200mm | 1500mm | 2000mm | 3000mm |
| Max clamp length | 1200mm | 1500mm | 2000mm | 3000mm |
| Workpiece revolve speed | 20-120R/Min | 20-100R/Min | 20-60R/Min | 20-40R/Min |
| Hardening moving speed | 2-60mm/s | 2-50mm/s | 2-30mm/s | 2-20mm/s |
| Max Lifting speed | 100mm/s | 100mm/s | 100mm/s | 100mm/s |
| Cooling method | diluent cooling | diluent cooling | diluent cooling | diluent cooling |
| Workpiece outside diameter runout | =0.5mm | =0.5mm | =0.5mm | =0.5mm |
| /Power supply | AC220V | AC220V | AC220V | AC220V |
| Motor Power | 3.25KW | 3.2KW | 3.75kw | 4.25kw |
| Size | 1300X1300X2500MM | 1300X1300X2800mm | 1300X1300X3200mm | 1400x1400x4800mm |
| Net weight | 500KG | 550KG | 850KG | 1250KG |
