Product Details:
|
| Control System: | Mosfet | Application: | Heating, Forging, Melting, Hardening And Etc |
|---|---|---|---|
| Heating Material: | Metals | Cooling: | Water |
| Duty Cycle: | 100% | Work Principle: | Electromagnetic Induction Heating |
| Frequency: | 30~80KHZ | HS CODE: | 85144000 |
| Work Power: | 220V Single Phase | Condtion: | Brand New |
| High Light: | Mosfet Induction Brazing Equipment,80KHZ Induction Brazing Equipment,15KW Copper Pipe Brazing Machine |
||

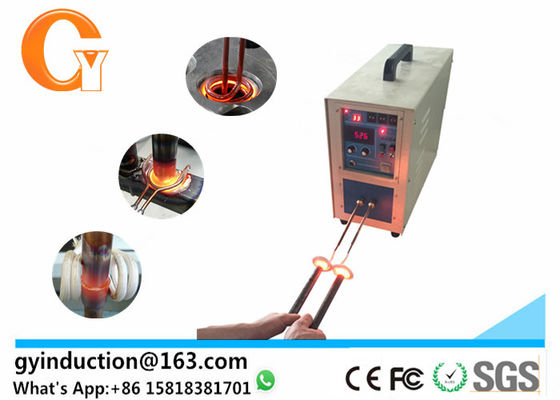

High Frequency 15KW Induction Heater For Copper Pipe Brazing
Induction brazing has many advantages over flame or furnace brazing. Fast, precise and reproducible heat input and reliability are outstanding benefits of this technology.GY offers induction heaters that are ideally adapted to the requirements of induction brazing for the following materials
Brazing is a process for joining two metals with a filler material that melts, flows, and wets the metals’ surfaces at a temperature that is lower than the melting temperature of the two metals. For example, the brazing temperature of brass is lower than many other materials, so it is often used as filler. Protection from oxidation of the metal surface and filler material during the joining process is achieved using a covering gas or a flux material.

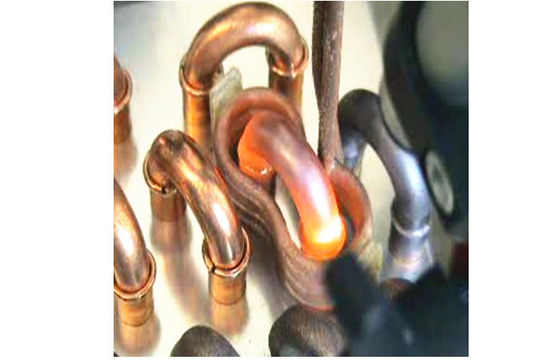

Induction brazing of silver,gold,copper, copper alloys, brass, aluminum, iron, steel, stainless steel, and all types of carbides. In addition, materials such as tungsten, chromium, nickel, nickel alloys, cobalt and precious metals can also be joined by induction brazing.
Induction Heater brazing for following field,
Induction Heater Brazing Advantage
Induction Heating Work Principle

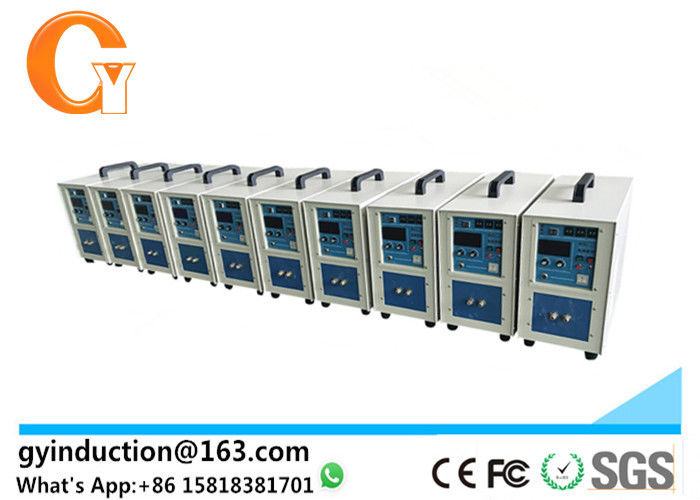

Induction Brazing Machine GY-15A Parameter:
| Model | GY-15A (Single phase) |
| work power | 180V-250V |
| input current | 35A |
| Fluctuating output power | 15KW |
| fluctuating frequency | 30-100KHZ |
| output current | 200-600A |
| the flow rate of cooling water | 0.06-0.12Mpa 7.5L/Min |
| water temperature protection point | 40C |
| product size | 570x230x450mm |
| net weight | 27.5kgs |
Delivery Time: within 3 workdays.
Shipping Term:By sea,By air,by express.

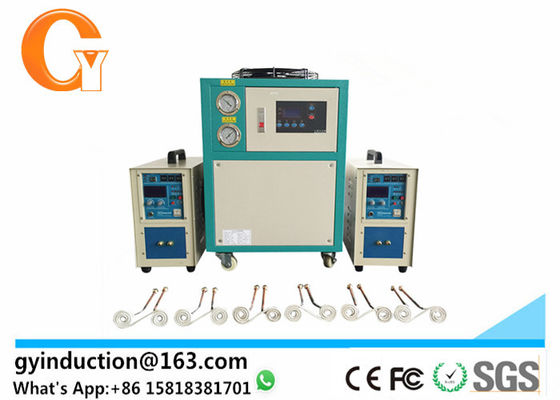

Extra accessories accept choose
1>Chiller
2>Customer design Coil
3>Infrared Thermometer
4>Back-up Electronic Boards
5>Forging Furnace,Melting Furnace,Hardening Fixture
Induction Heater Application
Induction Heater After service
Q: Why choose GuangYuan Company?
A: We are manufacture which had in this filed for nearly 20 years.No matter quality,
price,service,delivery time,we all have large advantage.
Q:How to choose suiteble machine?
A:You can tell us your application,need forging,hardening,welding,melting or other,
pass me workpiece material & size,Temperature requirement and heating time requirement.
Then we will recommend fit machine for you reference.
Q:How about the machine payment term&delivery time&Shipping term?
A: Our company payment term accept T/T,Western Union,L/C and so on.Small machine delivery
time is 3~7 workdays.Big machine delivery time 15~25 workdays.Shipping term accept EXW,FOB,
CIF and so on.
Q:How about the machine warranty?
A:Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free.
