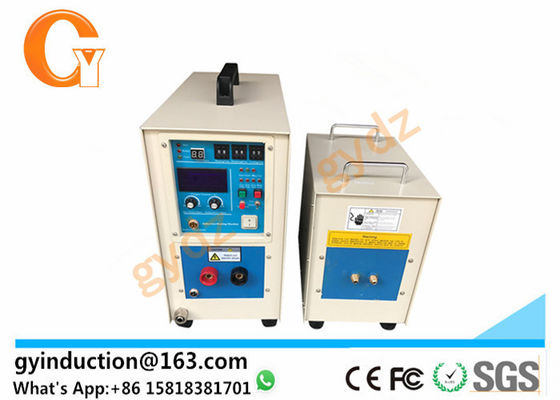

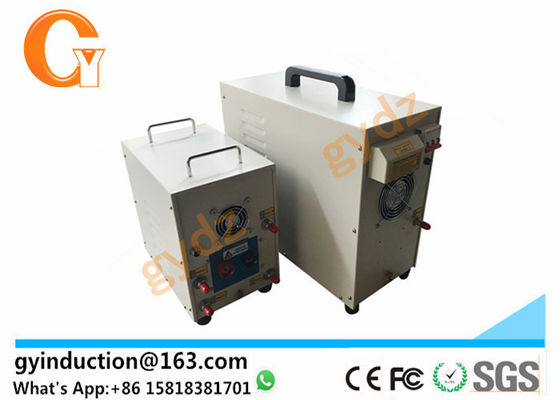

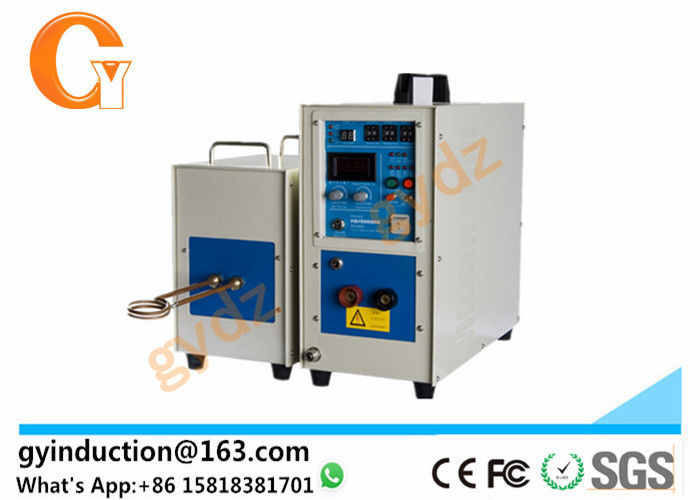

80KHZ 25KW IGBT Control Portable Induction Heater For Screw

80KHZ 25KW IGBT Control Portable Induction Heater For Screw
80KHZ 25KW IGBT Control Portable Induction Heater For Screw
80KHZ 25KW IGBT Control Portable Induction Heater For Screw 80KHZ 25KW IGBT Control Portable Induction Heater For Screw 80KHZ 25KW IGBT Control Portable Induction Heater For Screw 80KHZ 25KW IGBT Control Portable Induction Heater For Screw 80KHZ 25KW IGBT Control Portable Induction Heater For Screw

Large Image :  80KHZ 25KW IGBT Control Portable Induction Heater For Screw

Product Details:
Place of Origin: CHINA
Brand Name: GY
Certification: CE,SGS,FCC,ROHS
Model Number: GY-25AB
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: plywood boxes packing
Delivery Time: 3~7days
Payment Terms: T/T, Western Union
Supply Ability: 300SET per month

80KHZ 25KW IGBT Control Portable Induction Heater For Screw

Description
Control System: IGBT Application: Heating, Forging, Melting, Hardening And Etc
Heating Material: Metals Cooling: Water
Duty Cycle: 100% Work Principle: Electromagnetic Induction Heating
Frequency: 30~80KHZ HS CODE: 85144000
Work Power: 380V 3PHASE Condtion: Brand New
High Light:

IGBT Control Portable Induction Heater

,

25KW Portable Induction Heater

,

80KHZ Screw Induction Heater

High Frequency 25KW Portable Electric induction Heater For Screw



Induction Heater,Induction Heater Price,Prestige Induction heater,How to make an induction heater,induction heater for bearings,induction heater working,Induction Heater schematic.Induction heater Theory,induction heater equipment,induction heater brazing,induction heater transformer



Introduction of Portable Electric Induction Heater:


1) High Frequency induction heating machine with IGBT series parallel induction heating technology as the core.
2) Heating the workpiece surface and inside temperature to approximately equal by electromagnetic induction and conduction of heat.
3) The principle is the magnetic induction heating principle.
4) Oscillation frequency selection: the larger the diameter of the workpiece is, the lower the oscillation frequency is needed.
5) Wattage selection: the larger the diameter of the workpiece is, or the higher the efficiency is required, the bigger wattage is needed.

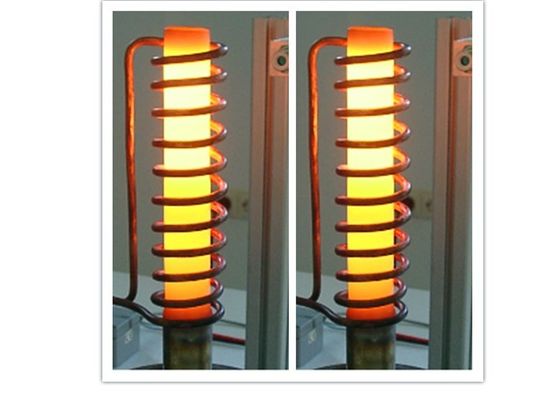

Induction Heater Application:



1, Heating (hot forging, hot fitting and smelting):



2, Heat Treatment (surface quench):



3, Welding (braze welding, silver soldering and brazing)



4, Annealing (tempering and modulation):







Induction Heater Work Principle

80KHZ 25KW IGBT Control Portable Induction Heater For Screw 0

Induction Heater GY-25AB Parameter:

Model GY-25AB (Three phase)
work power 340V-430V
input current 25A
Fluctuating output power 25KW
fluctuating frequency 30-80KHZ
output current 200-1200A
the flow rate of cooling water 0.06-0.12Mpa 7.5L/Min
water temperature protection point 40C
product size main 550x225x480mm
transformer : 350x215x380mm
net weight main : 21.5 kgs
transformer : 17 kgs

Delivery Time: within 3 workdays.
Shipping Term:By sea,By air,by express.

Extra accessories accept choose
1>Chiller
2>Customer design Coil
3>Infrared Thermometer
4>Back-up Electronic Boards
5>Forging Furnace,Melting Furnace,Hardening Fixture



80KHZ 25KW IGBT Control Portable Induction Heater For Screw 1







80KHZ 25KW IGBT Control Portable Induction Heater For Screw 2

Induction Heater Application

80KHZ 25KW IGBT Control Portable Induction Heater For Screw 3



80KHZ 25KW IGBT Control Portable Induction Heater For Screw 4

Induction Heater After service



Q: Why choose GuangYuan Company?
A: We are manufacture which had in this filed for nearly 20 years.No matter quality,

price,service,delivery time,we all have large advantage.

Q:How to choose suiteble machine?
A:You can tell us your application,need forging,hardening,welding,melting or other,

pass me workpiece material & size,Temperature requirement and heating time requirement.

Then we will recommend fit machine for you reference.

Q:How about the machine payment term&delivery time&Shipping term?
A: Our company payment term accept T/T,Western Union,L/C and so on.Small machine delivery

time is 3~7 workdays.Big machine delivery time 15~25 workdays.Shipping term accept EXW,FOB,

CIF and so on.

Q:How about the machine warranty?
A:Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free.

80KHZ 25KW IGBT Control Portable Induction Heater For Screw 5
