|Shaft,gear,Wheel Hub Harden
|Electromagnetic Induction Heating
|One Year Warranty
20KHZ Induction Heating Forging Furnace,
IGBT Induction Heating Forging Furnace,
25KW Steel Rod Induction Heater

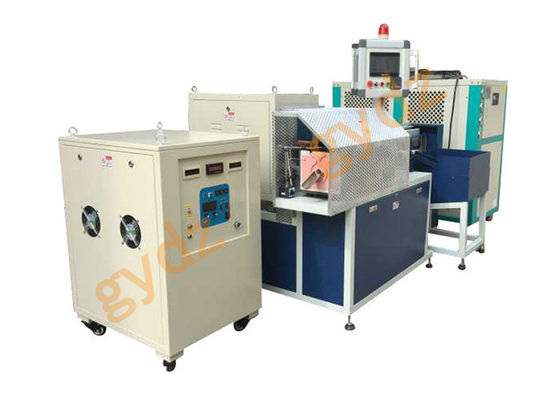

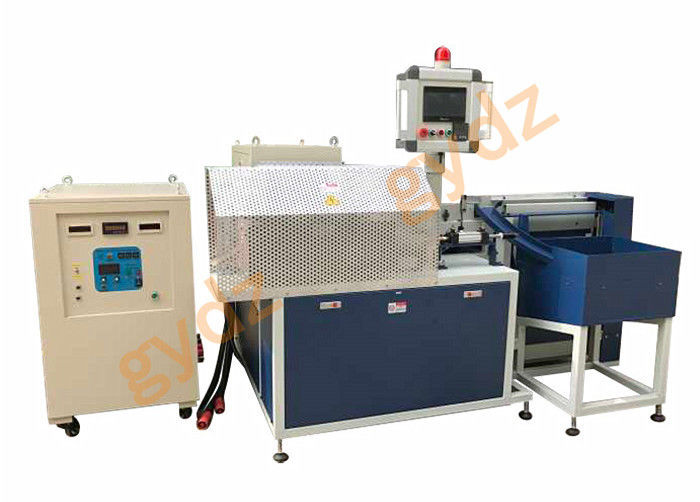

Medium Frequency Steel Rod Induction Heating Forging Furnace
Induction Heating Machine,Induction Forging Furnace,Induction Heating Equipment,Induction Heating forging
Induction heating – a highly efficient technology for heating metals in very short times
GuangYuan Induction generators offer excellent technical properties for the induction heating of metals. Induction heating is a very quick and precise process as heat is applied selectively only to parts of the workpiece where heat treatment is desired. Induction is generally suitable for all electrically conductive materials.
|Max output power
|heating capability for common materials
|GYM-25 forging furnace
|Recommending for￠15－30mm steel bar heating
|GYM-40 forging furnace
|GYM-60 forging furnace
|Recommending for￠1550mm steel bar heating
|GYM-100 forging furnace
|GYM-160 forging furnace
|Recommending for￠1580mm steel bar heating
|GYM-200 forging furnace
|GYM-250 forging furnace
|Recommending for bigger than ￠80mm mm steel bar heating
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
6 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
What is induction heating? How does induction heating work?
During induction heating eddy currents are induced in an electrically conductive metallic workpiece by an alternating electromagnetic field. These are converted into heat by magnetic loss. – Or, simply put, the metal heats up due to the current flow produced in the workpiece. This enables induction heating to introduce heat directly into the workpiece rather than through connectivity from an external source such as heating with a flame or in a furnace. This process thus achieves a very high degree of efficiency. Additionally, heating can also be accomplished passing through non-conductive materials. The surrounding area is only heated indirectly.
Influences on induction heating
The depth of heating of the workpiece depends on the material properties of the workpiece. The frequency of the current supplied by the generator also has a significant influence on the depth of heating. Higher frequencies are particularly suitable for heating contours very accurately at a low depth of penetration in the workpiece. Lower frequencies are suitable for a higher depth of penetration.
Depending on the task, a detailed analysis must therefore be performed in order to select the optimal generator for the induction heating task. Next to the inductor, the frequency is one of the key criteria for the success of induction heating process. However, the material, heating temperature and production batch sizes also have a significant influence on the design of an induction heating solution.
Induction Heating machine After service
1. Which countries your products are exported to?
Our products are sold all over the world and with related certifications.
2. How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.
3. How to install your machine?
We have paper installation instructions and videos, we will teach till you learn it.
4. Which export port you use?
Any China port, commonly we will use Shenzhen, Guangzhou, Hongkong port, it can appoint as you like.
5. How about the payment terms and delivery time?
Payment terms for small machines: 100% T/T/ Western Union/Cash in advance.
The big machines and big amount: 30% deposit, 70% before shipment (we will shoot total delivering process for customer's confirmation)and the related papers. You an pay by T/T, L/C, Western Union or other ways.
The small machine delivery time is within 7 days, the bigger one takes about 15days, we will delivery goods on time.
6. Is your goods has certificate?
Yes, all our goods have CE,FCC,ROHS. All machines are high quality goods.
7. What is your feature of your company: Dealer or factory?
We are manufacturer for nearly 20 years, warmly welcome to visit our factory at any time.
