Saw Blade Brazing 60A 7.6L/Min Induction Forging Machine 60KW

Saw Blade Brazing 60A 7.6L/Min Induction Forging Machine 60KW
Saw Blade Brazing 60A 7.6L/Min Induction Forging Machine 60KW
Saw Blade Brazing 60A 7.6L/Min Induction Forging Machine 60KW Saw Blade Brazing 60A 7.6L/Min Induction Forging Machine 60KW Saw Blade Brazing 60A 7.6L/Min Induction Forging Machine 60KW Saw Blade Brazing 60A 7.6L/Min Induction Forging Machine 60KW

Large Image :  Saw Blade Brazing 60A 7.6L/Min Induction Forging Machine 60KW

Product Details:
Place of Origin: CHINA
Brand Name: GY
Certification: CE,FCC,ROHS
Model Number: GY-60AB
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: plywood boxes packing
Delivery Time: 3~7days
Payment Terms: T/T, Western Union
Supply Ability: 300SET per month

Saw Blade Brazing 60A 7.6L/Min Induction Forging Machine 60KW

Description
Control System: IGBT Application: Bolt Heating Induction Machine
Heating Material: Metals Cooling: Water
Duty Cycle: 100% Work Principle: Electromagnetic Induction Heating
Frequency: 30~80KHZ HS CODE: 85144000
Work Power: 380V 3PHASE Condtion: Brand New
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support
High Light:

7.6L/Min Induction Forging Machine

,

60A Induction Forging Machine

,

60KW Saw Blade Brazing Machine

Saw Blade Brazing High Frequency Induction Heating Machine 60KW



Induction brazing is often used in higher production runs. It produces uniform results and is very repeatable. There are many types of industrial equipment where induction brazing is used. For instance, Induction is used for brazing carbide to shaft.

Model GY-60AB (Three phase)
work power 340V-430V
input current 60A
Fluctuating output power 60KW
fluctuating frequency 30-80KHZ
output current 400-2400A
the flow rate of cooling water 0.08-0.16Mpa 7.6L/Min
water temperature protection point 40C
product size main : 640x280x550 mm
transformer : 510x260x410 mm
net weight main : 37.5 kgs
transformer : 32.5 kgs



Delivery Time: within 3 workdays.
Shipping Term:By sea,By air,by express.

Extra accessories accept choose
1>Chiller
2>Customer design Coil
3>Infrared Thermometer
4>Back-up Electronic Boards
5>Forging Furnace,Melting Furnace,Hardening Fixture





Scope of induction heating application

1. Adopt MOSFET. High frequency, energy saving and steady.

2. Heating speed is fast and high efficiency.

3. Only heat the part inside the coil, little distortion.

4. Short heating time. There is no oxide layer on the surface of the workpiece.

5. Easy operation, good working environment and no pollution.

6. Control heating temperature and heating time easily. Ensure heating quality and could achieve line production.





Our services


1).Pre-sale service:
1.Inquiry and consulting service
2.recommend the most suitable for our customers according to their requirements
3.Sample testing support
4.working videos available
5.View our factory


In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.





Induction heating is often used in the heat treatment of metal items. The most common applications are induction hardening of steel parts, induction soldering/brazing as a means of joining metal components and induction annealing to selectively soften an area of a steel part.

Induction heating can produce high-power densities which allow short interaction times to reach the required temperature. This gives tight control of the heating pattern with the pattern following the applied magnetic field quite closely and allows reduced thermal distortion and damage.

This ability can be used in hardening to produce parts with varying properties. The most common hardening process is to produce a localised surface hardening of an area that needs wear-resistance, while retaining the toughness of the original structure as needed elsewhere. The depth of induction hardened patterns can be controlled through choice of induction-frequency, power-density and interaction time.

Limits to the flexibility of the process arise from the need to produce dedicated inductors for many applications. This is quite expensive and requires the marshalling of high-current densities in small copper inductors, which can require specialized engineering and "copper-fitting."

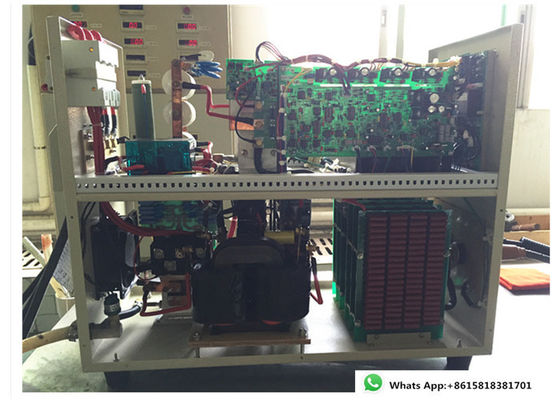

Saw Blade Brazing 60A 7.6L/Min Induction Forging Machine 60KW 0

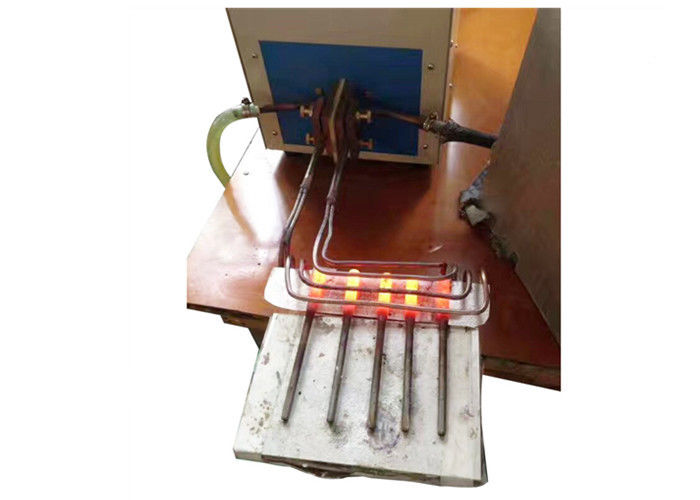

Saw Blade Brazing 60A 7.6L/Min Induction Forging Machine 60KW 1

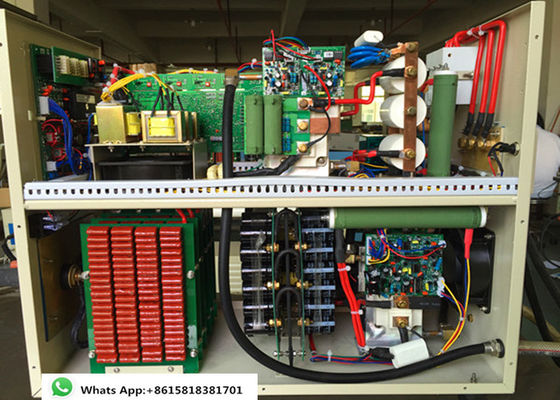

Saw Blade Brazing 60A 7.6L/Min Induction Forging Machine 60KW 2



Saw Blade Brazing 60A 7.6L/Min Induction Forging Machine 60KW 3

CALENTAMIENTO P/INDUCCION,HORNO DE INDUCCION,MAQUINA DE CALENTAMIENTO

LOS DEMAS APARATOS PARA TRATAMIENTO TERMICO DE MATERIAS POR INDUCCION O PERDIDAS DIELECTRICAS
