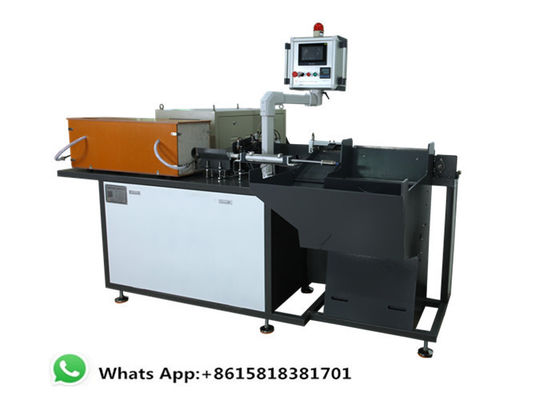

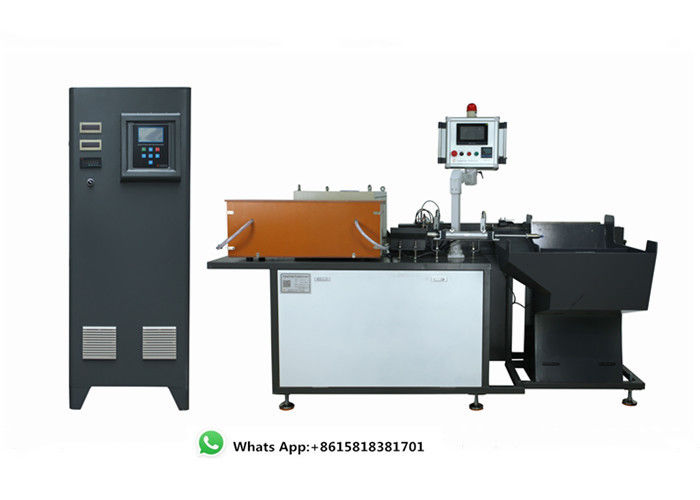

1200C 250KW Induction Forging Furnace For Carbon Steel Preheating

1200C 250KW Induction Forging Furnace For Carbon Steel Preheating
1200C 250KW Induction Forging Furnace For Carbon Steel Preheating
1200C 250KW Induction Forging Furnace For Carbon Steel Preheating 1200C 250KW Induction Forging Furnace For Carbon Steel Preheating 1200C 250KW Induction Forging Furnace For Carbon Steel Preheating 1200C 250KW Induction Forging Furnace For Carbon Steel Preheating

Large Image :  1200C 250KW Induction Forging Furnace For Carbon Steel Preheating

Product Details:
Place of Origin: CHINA
Brand Name: GY
Certification: CE,SGS,FCC,ROHS
Model Number: GYM-250AB
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: plywood boxes packing
Delivery Time: 7~15days
Payment Terms: T/T, Western Union
Supply Ability: 300SET per month

1200C 250KW Induction Forging Furnace For Carbon Steel Preheating

Description
Control System: IGBT Application: Brass,copper,steel Billet Forging
Heating Material: Metals Cooling: Water
Work Principle: Electromagnetic Induction Heating Frequency: 5~20KHZ
HS CODE: 85144000 Work Power: 380V 3phase
Condtion: Brand New Warranty: One Year Warranty
High Light:

250KW Induction Forging Furnace

,

1200C Induction Forging Furnace

,

IGBT Carbon Steel Preheating Machine

Induction Forging Furnace 250KW For Carbon Steel Preheating 1200C



Induction Heating Machine,Induction Forging Furnace,Induction Heating Equipment,Induction Heating forging

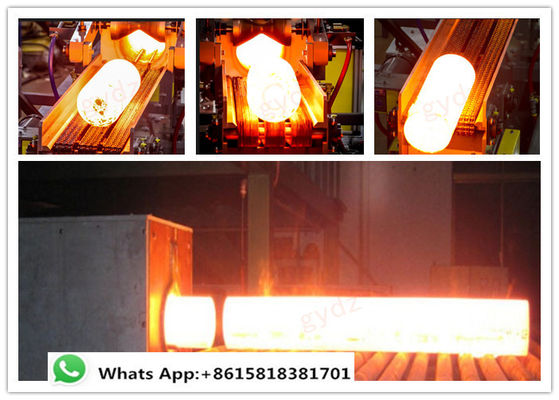

Induction forging applications



(1) Round steel categories:

A. bolts, nuts, drill head hot forge, the car U-bolts, anchor bolt, connecting rod, non-standard parts processing, conductive rod

B. stainless steel tableware, stainless steel bolts and nuts

C. tools: pliers, bolt cutters, pipe clamp, water pump pliers, pliers, wrenches, ratchet wrenches, masonry chisel,

D. Other: sewing gadgets, jack head, boss chair, shackles, hand rings, flowers Lancashire body, feet kidnapper, tricycle axle, briquettes machine Chong-pin, roll gate axis, articulated manifolds, hot-rolled twist drill, Hot-rolled rebar, hot-rolled woodworking drill, bearing



(2) sheet/plate categories:

A. forged stainless steel cutlery, automotive steel plate.

B. sheet folding: folding iron hand jack,
metal folding channel, automotive steel, hot rolled construction steel buckle, automotive leaf spring

C. embossed: Iron Works
embossing, embossing motorcycle brake pedal heating, sanitary ware.

D. Forming: bending, upsetting head, punching, flatten, step
by step tight angle iron molding, from nails, rasp, sanitary ware



(3) pipe deformation: pipe heat distortion, fire extinguishers
stretching, stretching cylinders, fans rose shaped brackets bend, pipe up hole, bicycle fork shrinkage, food machinery punching



(4) other categories: Electric Vehicle wrist, drill rod, drill bits, copper pieces (communication, air conditioning parts), trains
pin, watch cases, railway rail pressure rin



MFP GYM-40KW GYM-80KW GYM-100KW GYM-120KW GYM-160KW GYM-200KW GYM-250KW GYM-300KW GYM-400KW GYM-500KW
Bar Diameter 15~30(mm) 15~50(mm) 20~50(mm) 20~50(mm) 25~80(mm) 25~100MM 25~110MM 40~120(mm) 40~140(mm) 40~140(mm)
Production Rates 0.1~0.12(T/h) 0.2~0.25(T/h) 0.2~0.25(T/h) 0.2~0.3(T/h) 0.3~0.37(T/h) 0.4~0.6(T/h) 0.4~0.65(T/h) 0.7~0.8(T/h) 0.8~0.9(T/h) 1.0~1.2(T/h)
Output Power 40KW 80KW 100KW 120KW 160KW 200KW 250KW 300KW 400KW 500KW
Input Current 60A 120A 150A 180A 240A 300A 375A 450A 600A 750A
Work Frequency 1~10KHZ
Work Power 380V/50~60HZ 3phases
Duty Cycle 24Hours non-stop
Dimension Customs Design depends on bar size



Features of medium frequency induction forging machine:



1. Wide frequency range: 1KHZ—20KHZ, according the diameter of working piece to choose suitable frequency.




2. When heating a whole piece of material, the length of induction coil can be made from 500mm –1m, when heating multiple pieces, better penetrating results can be guaranteed.



3. It adopts continuously heating method, with uniform load in induction coil, it can solve the problem of great voltage change in output power during heating process when the temperature of work piece reach 1100℃ from room temperature, by this way, actual output power can be always above 95% efficiency, thus the machine is effectively used.




4. When heating bronze, aluminum and other nonferrous metal, by suitable design of induction coil and capacitance, the actual output power of machine can be above 85% efficiency than calculated.



5. Compare with controllable silicon frequency machine, our equipment is of small size, easy maintenances, and can save power by approximately 15--20%.





Mainly used for work pieces heating, heating temperature is between 200-1400 degrees.
1, Pre-forging heating: applied to gear, ring gear, bearing, shackle, rigging.
2, Online heating: Pipe anti-corrosion coating, long steel rod heating, steel (wire) tube online quenching and tempering.
3, Local heating: U-bolt bending, thermal assembly of the drum,Steel pipe elbow etc.





Induction Heating machine After service



1. Which countries your products are exported to?
Our products are sold all over the world and with related certifications.

2. How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.

3. How to install your machine?
We have paper installation instructions and videos, we will teach till you learn it.

4. Which export port you use?
Any China port, commonly we will use Shenzhen, Guangzhou, Hongkong port, it can appoint as you like.

5. How about the payment terms and delivery time?
Payment terms for small machines: 100% T/T/ Western Union/Cash in advance.
The big machines and big amount: 30% deposit, 70% before shipment (we will shoot total delivering process for customer's confirmation)and the related papers. You an pay by T/T, L/C, Western Union or other ways.
The small machine delivery time is within 7 days, the bigger one takes about 15days, we will delivery goods on time.

6. Is your goods has certificate?
Yes, all our goods have CE,FCC,ROHS. All machines are high quality goods.

7. What is your feature of your company: Dealer or factory?
We are manufacturer for nearly 20 years, warmly welcome to visit our factory at any time.
