Product Details:
|
| Control System: | IGBT | Application: | Round Rod Steel Bar Heating |
|---|---|---|---|
| Heating Material: | Metals | Cooling: | Water |
| Work Principle: | Electromagnetic Induction Heating | Frequency: | 5~20KHZ |
| HS CODE: | 85144000 | Work Power: | 380V 3phase |
| Condtion: | Brand New | Warranty: | One Year Warranty |
| High Light: | IGBT Control Induction Heating Machine,80KW Induction Heating Machine,20KHZ Metal Forging Equipment |
||

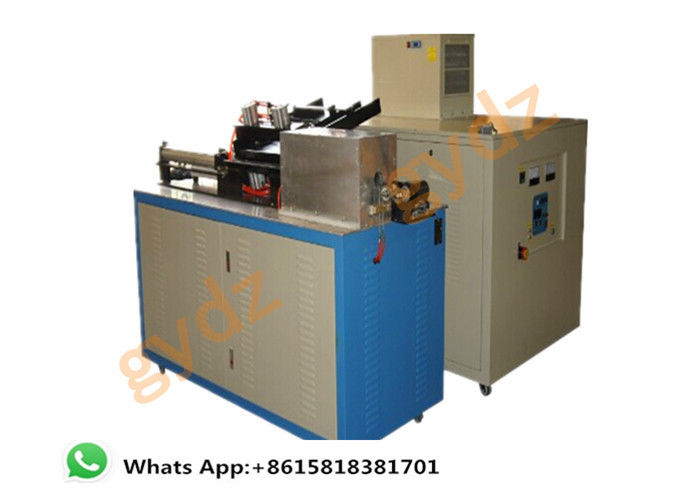

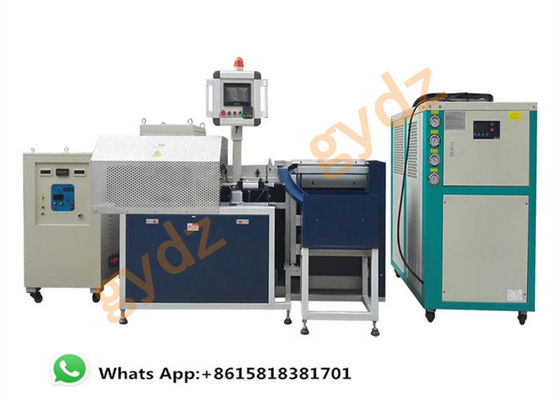

Round Rod Steel Bar Induction Heating Machine Metal Forging Equipment
Induction Heating Machine,Induction Forging Furnace,Induction Heating Equipment,Induction Heating forging

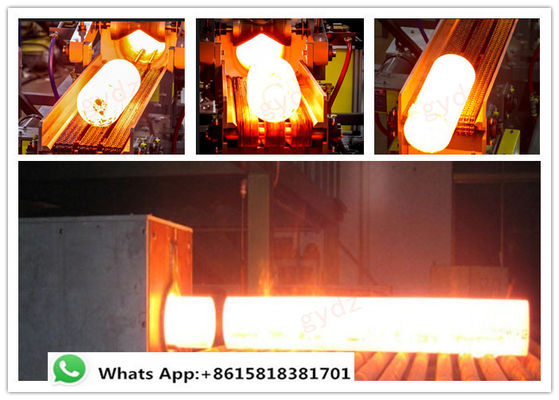

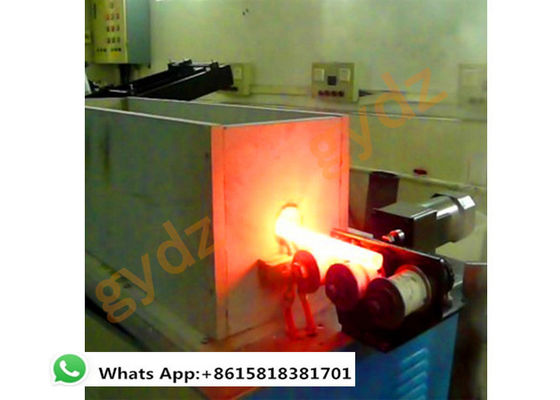

Induction forging applications
(1) Round steel categories:
A. bolts, nuts, drill head hot forge, the car U-bolts, anchor bolt, connecting rod, non-standard parts processing, conductive rod
B. stainless steel tableware, stainless steel bolts and nuts
C. tools: pliers, bolt cutters, pipe clamp, water pump pliers, pliers, wrenches, ratchet wrenches, masonry chisel,
D. Other: sewing gadgets, jack head, boss chair, shackles, hand rings, flowers Lancashire body, feet kidnapper, tricycle axle, briquettes machine Chong-pin, roll gate axis, articulated manifolds, hot-rolled twist drill, Hot-rolled rebar, hot-rolled woodworking drill, bearing
(2) sheet/plate categories:
A. forged stainless steel cutlery, automotive steel plate.
B. sheet folding: folding iron hand jack,
metal folding channel, automotive steel, hot rolled construction steel buckle, automotive leaf spring
C. embossed: Iron Works
embossing, embossing motorcycle brake pedal heating, sanitary ware.
D. Forming: bending, upsetting head, punching, flatten, step
by step tight angle iron molding, from nails, rasp, sanitary ware
(3) pipe deformation: pipe heat distortion, fire extinguishers
stretching, stretching cylinders, fans rose shaped brackets bend, pipe up hole, bicycle fork shrinkage, food machinery punching
(4) other categories: Electric Vehicle wrist, drill rod, drill bits, copper pieces (communication, air conditioning parts), trains
pin, watch cases, railway rail pressure rin
| MFP | GYM-40KW | GYM-80KW | GYM-100KW | GYM-120KW | GYM-160KW | GYM-200KW | GYM-250KW | GYM-300KW | GYM-400KW | GYM-500KW |
| Bar Diameter | 15~30(mm) | 15~50(mm) | 20~50(mm) | 20~50(mm) | 25~80(mm) | 25~100MM | 25~110MM | 40~120(mm) | 40~140(mm) | 40~140(mm) |
| Production Rates | 0.1~0.12(T/h) | 0.2~0.25(T/h) | 0.2~0.25(T/h) | 0.2~0.3(T/h) | 0.3~0.37(T/h) | 0.4~0.6(T/h) | 0.4~0.65(T/h) | 0.7~0.8(T/h) | 0.8~0.9(T/h) | 1.0~1.2(T/h) |
| Output Power | 40KW | 80KW | 100KW | 120KW | 160KW | 200KW | 250KW | 300KW | 400KW | 500KW |
| Input Current | 60A | 120A | 150A | 180A | 240A | 300A | 375A | 450A | 600A | 750A |
| Work Frequency | 1~10KHZ | |||||||||
| Work Power | 380V/50~60HZ 3phases | |||||||||
| Duty Cycle | 24Hours non-stop | |||||||||
| Dimension | Customs Design depends on bar size | |||||||||
Features of medium frequency induction forging machine:
1. Germany SIEMENS INFINEON IGBT Module. ( 40-60KHZ oscillation frequency, fast response time, superhigh stability, almost spatter-free welding )
2. Japan Nichicon electrolytic capacitor. ( filter capacitor )
3. Imported transistor integrated block.
4. All water pipe use thermostability, High pressure resistance best quality material.
5. Main card, signal circuit, drive circuit board,control circuit board and components are adopted:Toshiba, Hitachi,Motorola, China's top manufacturers.
6. International advanced all-solid-state semiconductor power devices.
7.Technical advantage:perfect control, alarm display circuit, getting full automatic tracking frequency, continuous adjustable power, safe dependable protection,clear and accuracy data display and etc.
8. Superiority Advantages: fast heating, wide application, small size, easy installation, simple operation, low power consumption, high efficiency.
Our services
1).Pre-sale service:
1.Inquiry and consulting service
2.recommend the most suitable for our customers according to their requirements
3.Sample testing support
4.working videos available
5.View our factory
In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.
