Product Details:
|
| Control System: | IGBT | Application: | Steel/Copper/Aluminium Induction Heating |
|---|---|---|---|
| Heating Material: | Metals | Cooling: | Water |
| Duty Cycle: | 100% | Work Principle: | Electromagnetic Induction Heating |
| Frequency: | 30~80KHZ | HS CODE: | 85144000 |
| Work Power: | 380V 3PHASE | Condtion: | Brand New |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support | ||
| High Light: | IGBT Pipe Preheating Bending Machine,80KHZ Pipe Preheating Bending Machine,5KW Electromagnetic Induction Heating Machine |
||

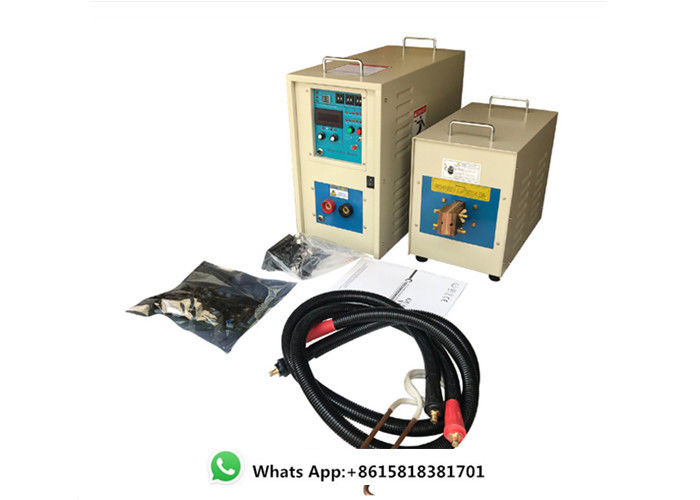

High Frequency Induction Heating Pipe Preheating Bending Machine
Guangyuan as induction heating machine manufacture which found in 2000.Over these years we had develop the reliable quality products.Products divide high frequency,medium frequency,super audio frequency,ultrahigh frequency.In order to fit customer requirement,we had produce special input voltage products,such as three phase 110V,220V,450V,480V.Also now good have further step,design full automated system,such as melting furnace,forging furnace,hardening fixture and so on.
Our induction heating machine better performance at hot forging, hardening,heat-treatment,brazing,bending,melting,annealing,shrink fitting and so on.
| Model | GY-05A | GY-15A | GY-15AB | GY-25A | GY-25AB | GY-30AB | GY-40AB | GY-60AB | GY-70AB | |
| Work Power | 220V 50HZ Single Phrase | 340V~520V 3Phrase 50~60HZ | ||||||||
| Output Power | 5KW | 15KW | 15KW | 25KW | 25KW | 30KW | 40KW | 60KW | 70KW | |
| Input Current | 32A | 32A | 32A | 24A | 24A | 28A | 41A | 52A | 64A | |
| Output Current | 100~500A | 200~600A | 200~600A | 200~1200A | 200~1200A | 300~1500A | 400~1800A | 400~2400A | 400~3200A | |
| Cooling Water Flow | 0.06-0.12Mpa 7.5L/Min | 0.08-0.16Mpa 7.6L/Min | ||||||||
| Work Frequency | 30~100KHZ | |||||||||
| Timing Setting | 1~99S | |||||||||
| water temperature protection point | 40C | |||||||||
| Dimension | Main Machine | 530x195x450mm | 570x230x450mm | 530x225x450mm | 570x230x510mm | 550x225x480mm | 640x260x520 mm | 620x250x530mm | 640x280x550 mm | 780x370x620 mm |
| Transformer | 370x210x370mm | 350x215x380mm | 440x260x410 mm | 480x260x410 mm | 510x260x410 mm | 870x430x750 mm | ||||
| Weight | Main Machine | 21.5KG | 27.5KG | 18kgs | 31kgs | 21.5 kgs | 26.5 kgs | 34.5kgs | 37.5 kgs | 54 kgs |
| Transformer | 15kgs | 17 kgs | 20.5 kgs | 31.5kgs | 32.5 kgs | 76.5 kgs | ||||
Delivery Time: within 3 workdays.
Shipping Term:By sea,By air,by express.

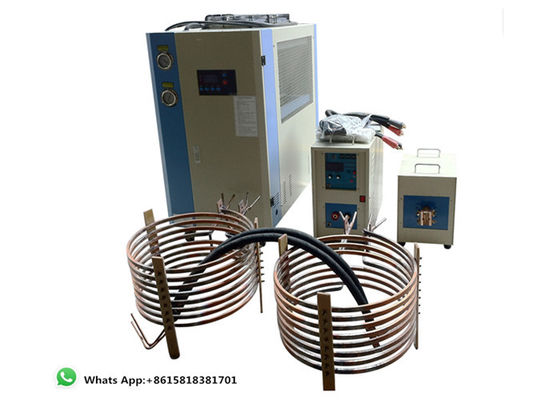

Extra accessories accept choose
1>Chiller
2>Customer design Coil
3>Infrared Thermometer
4>Back-up Electronic Boards
5>Forging Furnace,Melting Furnace,Hardening Fixture
Induction heating allows the targeted heating of an applicable item for applications including surface hardening, melting, brazing and soldering and heating to fit. Iron and its alloys respond best to induction heating, due to their ferromagnetic nature. Eddy currents can, however, be generated in any conductor, and magnetic hysteresis can occur in any magnetic material. Induction heating has been used to heat liquid conductors (such as molten metals) and also gaseous conductors. Induction heating is often used to heat graphite crucibles (containing other materials) and is used extensively in the semiconductor industry for the heating of silicon and other semiconductors. Utility frequency (50/60 Hz) induction heating is used for many lower-cost industrial applications as inverters are not required.
Scope of induction heating application
Hardening: gear inner hole harden, screw partial harden, bearing harden, gear harden
Smelting: precious metal smelting, nanocrystalline smelting molding, aluminum alloy smelting, silver bead smelting
Welding: stainless steel accessories welding, jewelry welding, copper and stainless steel welding, handicraft welding
Annealing: stainless steel tableware annealing, special-shaped hollow pipe fittings,stainless steel tube annealing, stainless steel sink annealing
Hot forging: hardware heating hot forging, bar forging, steel billet forging, steel bard head heating
Induction Heating Work Principle
Induction Heating Machine After service
Q1, what is your application?
For example: induction brazing/ billets forging heating/ heat treatment/ melting furnace
Q2, what is the workpiece metal material/ dimention?
Forexample:steel/stainless steel/brass/copper/Aluminum,etc
diameter, length, thickness, heating zone length, heat treatment layer depth
Q3, What is the request heating temperature and time?
For example: heating temperature 1000C, 500kgs/hour
Q4, Does your company work on OEM?
Yes, we have a professional design and technical team to do the customization
Q5, What’s the delivery time after the order is placed?
We arrange the shipment in 3-15 days for standard machine. It takes us more days for customized machines
Q6, How about the warranty?
The warranty is one year by offering spare parts for free and we provide lifelong maintenance.
Q7, What can you provide after service?
We provide machine running video, instruction manual in English, spare parts Also
our engineers are available to clients’ factory and technical training.
