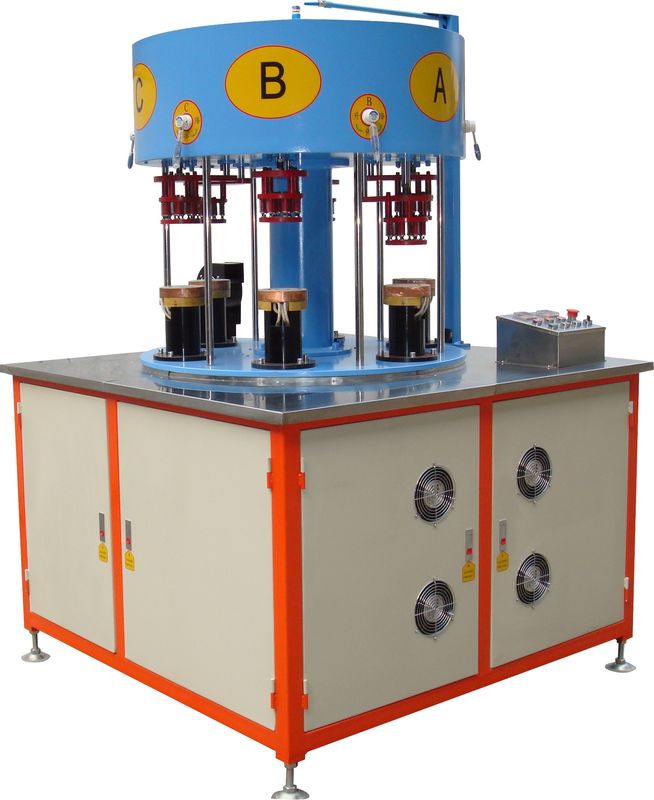

Six Stations Braze welding machine Induction heating machine 40KW

Six Stations Braze welding machine Induction heating machine 40KW
Six Stations Braze welding machine Induction heating machine 40KW Six Stations Braze welding machine Induction heating machine 40KW Six Stations Braze welding machine Induction heating machine 40KW Six Stations Braze welding machine Induction heating machine 40KW

Large Image :  Six Stations Braze welding machine Induction heating machine 40KW

Product Details:
Place of Origin: China
Brand Name: GY
Certification: CE, SGS , ROHS
Model Number: GY-40C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden box
Delivery Time: Depend on the order and destination
Payment Terms: TT
Supply Ability: 500set/month

Six Stations Braze welding machine Induction heating machine 40KW

Description
High Light:

Induction Welding Equipment

,

high frequency induction welding machine

Six station Braze welding machine Induction heating machine 40KW



Quick Detail:

Name

Six Station Braze welding machine Induction heating machine 40KW



Application

Brazing welding

Work power

360V-520V

Out power

40KW

Model Number

GY-40C

Certificate

CE,SGS, ROHS





Technical Parameters



Type

GY-25C

GY-40C

GY-60C

GY-80C

Work power

Three phase 380V 50HZ

Three phase 380V 50HZ

Three phase 380V 50HZ

Three phase 380V 50HZ

The range of operating voltage

360V-520V

360V-520V

360V-520V

360V-520V

Output power

25KW

40KW

60KW

80KW

Fluctuating frequency

30-80KHZ

30-80KHZ

30-80KHZ

30-80KHZ

Output current

200-1200A

400-1800A

400-2400A

400-3200A

Brazing diameters

150mm

250mm

300mm

400mm





Major Features

It uses the high power IGBT high frequency equipment to provide heating power and the pneumatic system as the drive. It has such features as stable operation, precise control, easy operation an high rate of products meeting standards, which is the most ideal equipment for manufacturing on new generation of electric heating stainless steel kitchen utensil.

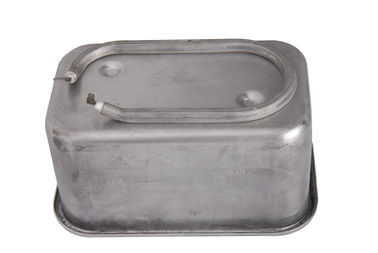

It is applicable to the welding of such electric heating products as electric heating pan, hot-water kettle, frying pan and coffee pot, which can make the stainless steel plate, alumium sheet and tubular electric heating element of different shapes and thickness form an integral part through one-off metal braze welding.

Operating Principle

Frequency conversion electromagnetic induction heating or induction heating for short is a method for heating metal materials by converting power frequency power supply into that of specific range based on the principle of electromagnetic induction. It is mainly applicable to the metal hot working, heat treatment, welding and melting. This type of heating technique is also applicable to packing industry (such as sealing of aluminum foil used in medicine and food industry), semiconductor material (such as extruded monocrystalline silicon and heated affixing metal parts for auto glass).

Basic components of induction heating system include induction coil, AC power source and work pieces. Induction coil can be fabricated into different shapes as per different heated objects. The coil is connected with the power source providing alternating current for coil. The alternating current possessed by the coil can create a alternating magnetic field passing through the work pieces to produce eddy flow as required by heating.





Advantages of Induction Heating Equipment



1. Fast heating: the minimum rate of heating is less than 1 second (rate of heating is available for adjustment and control).

2. Wide coverage of heating: it can be used to heat various metal parts (replace removable induction coil as per different operating switches).

3. Easy installation: it can be used once it is connected with power source, induction coil as well as water supply pipe and rising pipe; it is small in size and light in weight.

4. Easy operation: you can learn to operate it within several minutes.

5. Fast start-up: it can be started to perform heating operation on condition that water and power supply is available.

6. Low power consumption: As compared with conventional vacuum tube high frequency equipments, it can save the power by approximately 70%. The smaller the size of the work piece is, the lower power consumption would be.

7. High effectiveness: it has such features as uniform heating (it is applicable to adjust the spacing of the induction coil to ensure the appropriate temperature as required by each part of work piece), fast warming and limited oxic horizon, and can guard against any waste after annealing.

8. Comprehensive protection: it has such functions as overpressure, over-current, overheat and water shortage alarm indications as well as automatic control and protection.

9. Controllable temperature: it is applicable to control the temperature for heating work pieces as per the preset heating time, and thereby control the heating temperature at a certain technical point.

10. Comprehensive full load design: it can work continuously for 24 hours.

11. Small size and light weight: it has a weight of only several dozens of kilograms, of which, the limited floor space can effectively save the workshop space.

12. Elimination of high voltage: it requires no step-up transformer which may produce approximately ten thousand voltage, and thus can ensure the maximum safety.



Six Stations Braze welding machine Induction heating machine 40KW 0Six Stations Braze welding machine Induction heating machine 40KW 1Six Stations Braze welding machine Induction heating machine 40KW 2Six Stations Braze welding machine Induction heating machine 40KW 3
