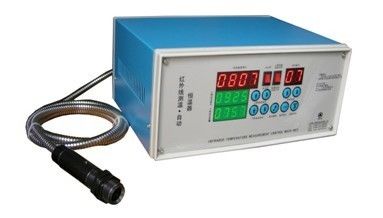

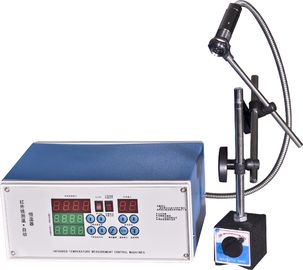

700-1600℃ Digital Infrared Thermometer for Induction Heat treatment machine

700-1600℃ Digital Infrared Thermometer for Induction Heat treatment machine
700-1600℃ Digital Infrared Thermometer for Induction Heat treatment machine 700-1600℃ Digital Infrared Thermometer for Induction Heat treatment machine

Large Image :  700-1600℃ Digital Infrared Thermometer for Induction Heat treatment machine

Product Details:
Place of Origin: China
Brand Name: GY
Certification: CE, SGS , ROHS
Model Number: GYE-716
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden box
Delivery Time: Depend on the order and destination
Payment Terms: TT
Supply Ability: 500set/month

700-1600℃ Digital Infrared Thermometer for Induction Heat treatment machine

Description
High Light:

Auxiliary machinery

,

Auxiliary machine

Infrared Thermometer Auxiliary Equipment for Induction Heating Machine





Quick Detail:

Name

Infrared Thermometer Auxiliary Equipment for Induction Heating Machine



Application Refrigerator
Control Type Digital  Display Type LED
Model Number GYE-716 Certificate CE,SGS, ROHS





Machine Type Temperature range
GYE280 250~800C
GYE412 400~1200C
GYE716 700~1600C
GYE1020 1000~2000C
GYE1527 1500~2700C

Product Description

Features:
1. Relay switch signal output, switch current signal output, two models as options.


Relay switch output mode, the signal output device is reed relay, characterized can bear high voltage, withstand big current, string directly into the contactor control coil loop, common use.
Switch current output mode, ( non-contact output way ), the output signal standard is set to 12V 50MA ( or in connection according to customer requirements ) switch voltage signal, used for directly drive the solid-state relays, non-contact switch, due to the response of the solid-state relay fast, and it could get the best situation.


2. Automatic delay timer start way options


The machine automatically delay start timer, there are two ways: One is start the machine and start the timer at the same time, the other is: Workpiece heated to the upper limit setting temperature begin to timing, , selected by the switch on the front panel, suitable for quenching, hardening and so on.


3. Automatic delay time scale selection


Factory standard full scale of 9.9 seconds and 99 seconds, selected by the switch on the front panel, the other scale is set according to customer requirements


4. Fiber optic sensing


Since the detector adapt to the ambient temperature is below 75 ° C, the use of fiber optic sensing. Detector placed in the main part, the probe tolerance to adapt to high temperatures and strong electromagnetic interference environment


5.Fully coaxial laser sighting


Laser direct measurement position and with the actual testing point is fully same, they can ON or OFF at any time. The laser sighting switch without any operation, laser sighting will automatically enter turned off, and in order to reduce the power consumption, the factory setting is 30 seconds.


6.Easy to operate


Upper limit temperature and lower limit temperature, time set by the respective plus less key to set, and keep continue display, but should remember the lower limit temperature should be can not higher than upper limit temperature. When the upper and lower limit is same, up the lower limit temperature unless, and also down the upper temperature, the lower limit temperature down automatic at the same time. If press temperature difference delete one time, lower limit temperature =upper limited temperature automatic.
