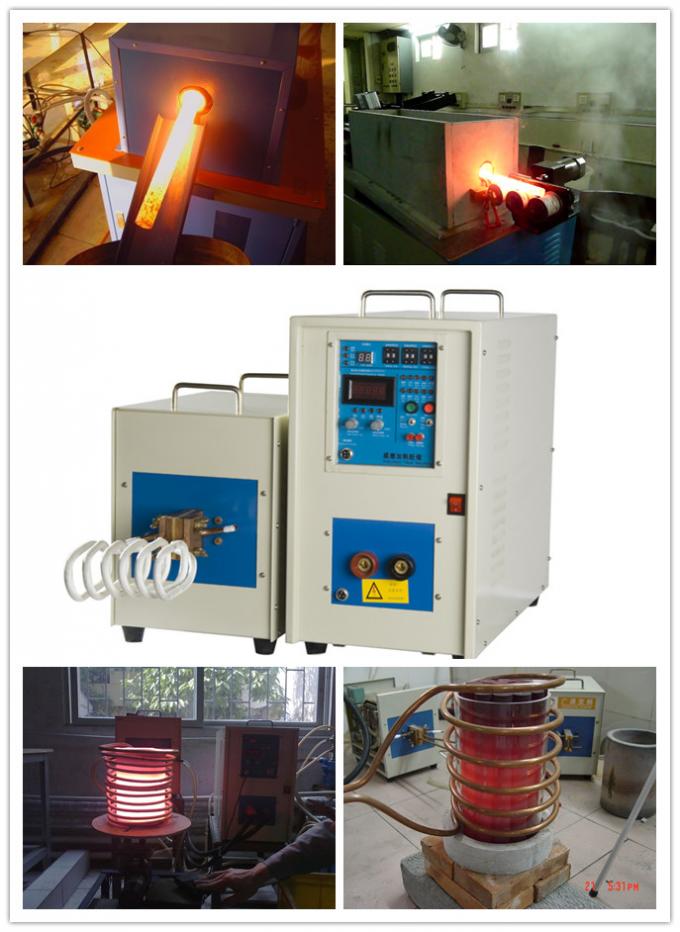

40KW Induction Heating Equipment For brazing , Heat Penetration

40KW Induction Heating Equipment For brazing , Heat Penetration

Quick Details

Place of Origin: Guangdong, China(Mainlan)

Brand Name: GY

Model Number:GY-40AB

After-sales Service Provided: Enigneers available to service machinery overseas

Input power: Three phase 340V-430V

Input current: 41A

Output current:200-1800A

Specification

Characteristics of GY induction heating machine Melting Furnace

1. Better Heating penetration and even temperature inside the melting metal.

2. GY medium frequency induction heating machine field force can stir the melting pool to achieve better melting quality.

3. Melting the Maximum quantity by the recommend machine according to above table the melting time is 30-50 minutes,the first melting whenthe furnace  is cold ,and it will take about 20-30minutes for the later melting when the furnace is already hot.

4. Suitable for melting of steel,cooper,bronze,gold,silver and aluminum,stannum,maqnesium,stainless steel.

Main characteristics

1. Adoping MOSFGT and IGBT inverting device, tracking frequency automaticall
2. High frequency, heated quickly, its powei consumption is only 20%~30% of eletronic tube induction heating machine and other heating style.
3. Security and reliability, the equipments have the secure voltage and it's secure to operate
4. Manual, automatic regulating automatically, it can protect itself from over voltage, over current, lack of water, phase fail, over hot, etc
5. It has no open-fire, noise and pollution, be suit for the environmental protection and fire, improve the image of the company
6. Recommend usage: Weld, forging, hot cooperate, melting, quenching, anneat etc

    Application:

    A. Heat Penetration(hot forging, hot fitting):

1. Hot forging aims to fabricate the work pieces of certain temperature (different materials require different temperatures) into other shapes through forging press with the help of punch press, forging machine or other equipments, for instances, hot extrusion of watch case, watch flan, handle, mold accessory, kitchen and table ware, art ware, standard part, fastener, fabricated mechanical part, bronze lock, rivet, steel pin and pin.
2. Hot fitting refers to the connection of different metals or metals with nonmetals through the heating based on the principle of hot expansion or hot smelting, for instances, embedded welding of copper core of computer radiator with aluminum sheet and speaker web, compound of steel and plastic tube, sealing of aluminum foil (tooth paste peel), motor rotor and sealing of tubular electric heating element.

   B. Heat Treatment (surface hardening, tempering, annealing ):

   It is mainly aims to change the rigidity of the metal materials through the heat treatment to work pieces.

   Detail applications are stated as follows:

1.  Quench for various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear (orchard shear).
2. Quench for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, semi drive shaft, small shaft and fork.
3. Various electric tools, such as gear and axes.
4. Quench for machine tools, such as lathe deck and guide rail.
5. Quench for various hardware metal parts and machined parts, such as shaft, gear (chain wheel), cam, chuck and clamp etc.
6. Quench for hardware molds, such as small-size mold, mold accessory and inner hole of mold.
7.  Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
8. Annealing of various other metal work pieces, such as golf ball head, cue, brass lock, hardware copper fitting, kitchen knife handle, blade, aluminum pan, aluminum pail, aluminum radiator and various aluminum products.

    C. Welding (braze welding, silver soldering and brazing)

    It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material or different materials.

1.  Welding of various hardware cutting tools, such as diamond tool, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit.
2. Welding of various hardware mechanical gadget: Silver soldering and brazing of metals of the same variety or different varieties, such as hardware toilet and kitchen products, refrigerating copper fitting, lamp decoration fitting, precision mold fitting, hardware handle, eggbeater, alloy steel and steel, steel and copper as well as copper and copper.
3. Compound pot bottom welding is mainly applicable to the braze welding of circular, square as well as other irregular plain pot bottom. It is also applicable to plain braze welding of other metals.
4. Welding of heating disc of electric hot-water kettle mainly refers to the braze welding of stainless steel flat base, aluminum sheet and tubular electric heating elements of various forms

     D. Melting:

     Gold, sliver, copper, aluminum, iron, steel semiconducting materials, etc.

   Advantages:

   1. Fast Heating

   2. Wide coverage of heating

   3. Easy Installation

   4. Easy operation

   5. Fast start-up

   6.Low power consumption

   7. High effectiveness

   8. Comprehensive protection

   9. Controllable temperature

  10. Comprehensive full load design

  11. Small size and light weight

  12. Elimination of high voltage
