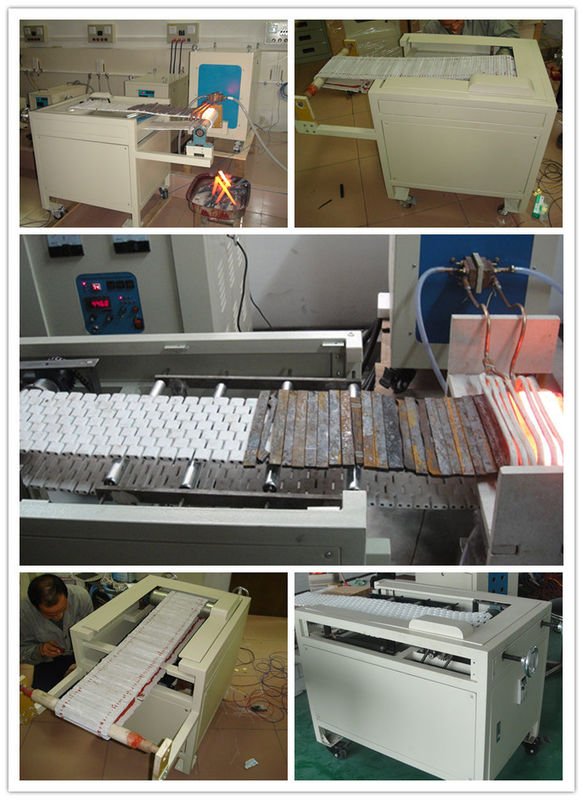

160KW Automatic Medium Frequency Induction Heating Equipment Feeding System

160KW Automatic Medium Frequency Induction Heating Equipment Feeding System
160KW Automatic Medium Frequency Induction Heating Equipment Feeding System

Large Image :  160KW Automatic Medium Frequency Induction Heating Equipment Feeding System

Product Details:
Place of Origin: China
Brand Name: GY
Certification: CE, ROHS, SGS
Model Number: GYM-160AB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500set/month

160KW Automatic Medium Frequency Induction Heating Equipment Feeding System

Description
High Light:

induction heating device

,

induction heating machine

160KW Automatic Medium Frequency Induction Heating Equipment Feeding System


Quick Detail:


Name

160KW Automatic Feeding System Medium Frequency Induction Heating Machine For Hardening

Application

Hot forging, hot fitting, smelting, surface quench, welding, annealing

Work power

360V-520V

Out power

160KW

Product size

main 820*600*1060mm
transformer 870*430*750mm

Certificate

CE,SGS,ROHS





Specification


Model

GYM-160AB  (Three phase)

Work power

 360V-520V

Maximum input current

 240A

Output power

160kw

Fluctuating frequency

1-10khz

Output current

400-6500A

The flow rate of cooling water

0.08-0.16Mpa 15L/Min

Water temperature protection point

 50C

Product size

main 1000x600x1100 mm

transformer  870x430x750 mm








Characteristics of  Medium Frequency Induction Heating Equipment




  1. All functions are microcomputer controlled: high reliability & stability.
  2. Ease of operation
  3. Solid-state generator technology, high efficiency
  4. Self-diagnostics including fault and mis-operation
  5. Stainless steel construction
  6. Control of the temperature with thermocouple (option) or optical sensor(option)
  7. Gas blow pipe to prevent oxidization(option)
  8. Much more efficient than gas-fired
  9. No special foundations required, Low operating cost
  10. Modular design, ease of maintaining and repairing

Applications

  1. Forge application.
  2. Standard parts,fasteners forge and press
  3. Steel drill rods,bars,parts forge,squeeze etc heating.
  4. Diamond saw blades,tools,blades brazing,welding,etc.
  5. Bits,coal,rivetting drill bits,milling cutters,wood tools brazing.
  6. Car fittings,motorcycle parts,metal parts,gears,chain wheels,axis,spline shaft,sess etc all kinds of hardening heat treatment.
  7. Annealing on steel vessel,machine parts while or part annealing treatment.
  8. Melting.all kinds of material,eg:gold/silver/platinum/copper/lead/alminum/steel/iron
  9. Tempering .all kinds of parts,tubes,bars,thread rods on line continuous tempering heat treatment jobs.
  10. All kinds of low temperature heat requirement.eg:hot fittings,after heat to coating
  11. Customized service supplied for billet induction heater.



   Advantages:


  1. save electric and energy.
  2. easy installation and operation.30 minutes can learn how to installation.
  3. small foundation requirements.
  4. no pollution.use electric,no pollution.
  5. can heat all kinds material of square,flat,round all kinds of billet.
