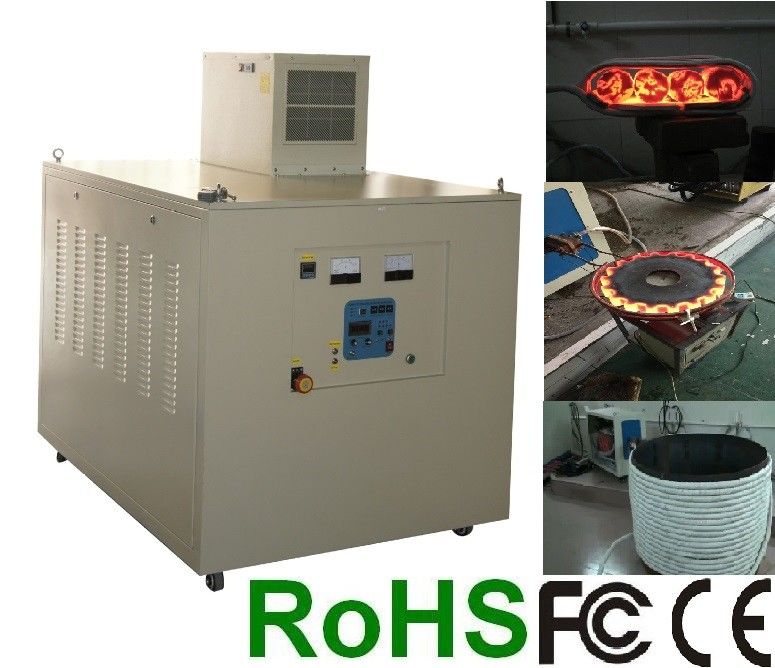

SF Super Audio Frequency Induction Heating 10-50khz 400KW For Graphite Heating

SF Super Audio Frequency Induction Heating 10-50khz 400KW For Graphite Heating
SF Super Audio Frequency Induction Heating 10-50khz 400KW For Graphite Heating SF Super Audio Frequency Induction Heating 10-50khz 400KW For Graphite Heating SF Super Audio Frequency Induction Heating 10-50khz 400KW For Graphite Heating SF Super Audio Frequency Induction Heating 10-50khz 400KW For Graphite Heating

Large Image :  SF Super Audio Frequency Induction Heating 10-50khz 400KW For Graphite Heating

Product Details:
Place of Origin: CHINA
Brand Name: GY
Certification: CE, FCC, ROHS
Model Number: GYS-400AB
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Ply wooden box
Delivery Time: 15-25 working days
Payment Terms: T/T, Western Union
Supply Ability: 50set per month

SF Super Audio Frequency Induction Heating 10-50khz 400KW For Graphite Heating

Description
After Service: Engineer Available To Service Machine Oversea Rated Load: 100%
Heating Principle: Magnetic Induction Heating
High Light:

Induction Heating apparatus

,

induction heaters

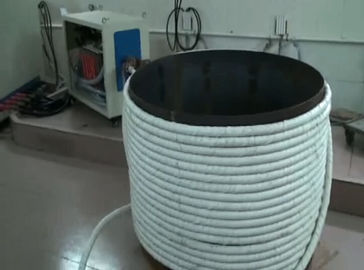

400KW SF Induction heating equipment for graphite heating, oil pipe heat treatment with frequency 10-50khz



Application DescriptionApplication of Induction Heating Equipments:

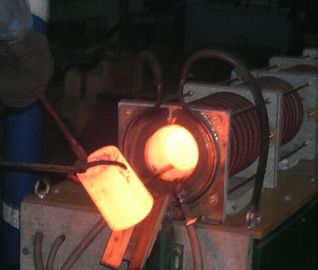

1, Heating (hot forging, hot fitting and smelting):
1) Hot forging aims to fabricate the work pieces of certain temperature (different materials require different temperatures) into other shapes through forging press with the help of punch press, forging machine or other equipments, for instances, hot extrusion of watch case, watch flan, handle, mold accessory, kitchen and table ware, art ware, standard part, fastener, fabricated mechanical part, bronze lock, rivet, steel pin and pin.
2) Hot fitting refers to the connection of different metals or metals with nonmetals through the heating based on the principle of hot expansion or hot smelting, for instances, embedded welding of copper core of computer radiator with aluminum sheet and speaker web, compound of steel and plastic tube, sealing of aluminum foil (tooth paste peel), motor rotor and sealing of tubular electric heating element.
3) Smelting mainly aims to melt the metal into liquid by using the high temperature, which is mainly applicable to the smelting of iron, steel, copper, aluminum, zinc as well as various noble metals.



2, Heat Treatment (surface quench):
It is mainly aims to change the rigidity of the metal materials through the heat treatment to work pieces. Detail applications are stated as follows:
1) Quench for various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear (orchard shear).
2) Quench for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, semi drive shaft, small shaft and fork.
3) Various electric tools, such as gear and axes.
4) Quench for machine tools, such as lathe deck and guide rail.
5) Quench for various hardware metal parts and machined parts, such as shaft, gear (chain wheel), cam, chuck and clamp etc.
6) Quench for hardware molds, such as small-size mold, mold accessory and inner hole of mold.



3, Welding (braze welding, silver soldering and brazing)
It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material or different materials.
1) Welding of various hardware cutting tools, such as diamond tool, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit.
2) Welding of various hardware mechanical gadget: Silver soldering and brazing of metals of the same variety or different varieties, such as hardware toilet and kitchen products, refrigerating copper fitting, lamp decoration fitting, precision mold fitting, hardware handle, eggbeater, alloy steel and steel, steel and copper as well as copper and copper.
3) Compound pot bottom welding is mainly applicable to the braze welding of circular, square as well as other irregular plain pot bottom. It is also applicable to plain braze welding of other metals.
4) Welding of heating disc of electric hot-water kettle mainly refers to the braze welding of stainless steel flat base, aluminum sheet and tubular electric heating elements of various forms.



4, Annealing (tempering and modulation):
1) Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
2) Annealing of various other metal work pieces, such as golf ball head, cue, brass lock, hardware copper fitting, kitchen knife handle, blade, aluminum pan, aluminum pail, aluminum radiator and various aluminum products.



Technical Parameter :

Model GYS-400AB (Three phase)
Work power 340V-430V(50Hz, 60Hz)
Maximum input current 450A
Output power 600KW
Fluctuating frequency 10-50KHZ
Output current 400-14000A
The flow rate of cooling water 0.08-0.16Mpa 35L/Min
Water temperature protection point 50C
Product size main : 1665 X 1100 X 1200MM
transformer : 1560x500x850 mm
Net weight main : 340kg
transformer : 190 kg



SF Super Audio Frequency Induction Heating 10-50khz 400KW For Graphite Heating 0SF Super Audio Frequency Induction Heating 10-50khz 400KW For Graphite Heating 1
