Product Details:
|
| Control System: | IGBT | Application: | Heating Equipment For Forging |
|---|---|---|---|
| Heating Material: | Metals | Cooling: | Water |
| Duty Cycle: | 100% | Work Principle: | Electromagnetic Induction Heating |
| Frequency: | 1~20KHZ | HS CODE: | 85144000 |
| Work Power: | 380V 3phase | Warranty: | One Year Warranty |
| High Light: | 20KHZ Induction Heating Equipment,100KW Induction Heating Equipment,FCC Steel Forging Induction Heater |
||
Medium Frequency Induction Heating Equipment For Steel Iron Forging
Induction heating machine,induction heating machine china,induction heating machine price,induction heating machine manufacture,induction heating machine for sale,induction heating machine for welding,induction heating machine work principle
Our Induction Heating Equipment adopts the most advanced technology MOS-FET,IGBT frequency conversion control to ensure high efficiency and maximum out-put power.Call us for money-saving,apply for heating,brazing,annealing,hardening,melting and so on.Benefit from our induction heating consultants nearly 20years experiences creating precision heating treatment solutions.
Main Parts Introduction
1. Germany SIEMENS INFINEON IGBT Module. ( oscillation frequency, fast response time, superhigh stability, almost spatter-free welding )
2. Japan Nichicon electrolytic capacitor. ( filter capacitor )
3. Imported transistor integrated block.
4. All water pipe use thermostability, High pressure resistance best quality material.
5. Main card, signal circuit, drive circuit board,control circuit board and components are adopted:Toshiba, Hitachi,Motorola, China's top manufacturers.
6. International advanced all-solid-state semiconductor power devices.
7.Technical advantage:perfect control, alarm display circuit, getting full automatic tracking frequency, continuous adjustable power, safe dependable protection,clear and accuracy data display and etc.
8. Superiority Advantages: fast heating, wide application, small size, easy installation, simple operation, low power consumption, high efficiency
Induction Heating Equipment GYM-100AB Parameter:
| Model | GYM-100AB (Three phase) |
| work power | 340V-430V |
| Maximum input current | 150A |
| Output power | 100KW |
| fluctuating frequency | 1-20khz |
| output current | 400-4000A |
| the flow rate of cooling water | 0.08-0.16Mpa 10L/Min |
| water temperature protection point | 50C |
| product size | main : 820x600x1060mm |
| transformer : 870x430x750 mm | |
| net weight | main : 110gks |
| transformer : 79.5kgs |
Delivery Time: within 7 workdays.
Shipping Term:By sea,By air,by express.
Extra accessories accept choose
1>Chiller
2>Customer design Coil
3>Infrared Thermometer
4>Back-up Electronic Boards
5>Forging Furnace,Melting Furnace,Hardening Fixture
Application of Induction Heating Equipment:

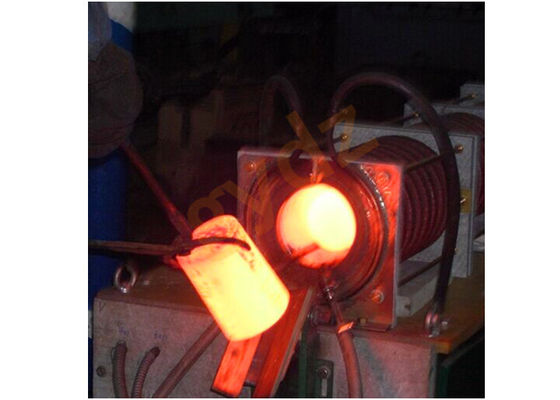

A. Heating (hot forging, hot fitting and melting):
B. Heat Treatment (surface quench):
C. Welding (braze welding, silver soldering and brazing)
D. Annealing (tempering and modulation)
Pre-sale service:
1. Immediate reply to your inquiry.
2. Experienced sales answer all questions in fluent English.
3. Customized design is available.
4. Detailed information of our products, and our company if needed.
After-sale service:
1. Technical support, or alternative accessories if necessary.
2. Freely guide installation, commissioning and test run.
3. One year's warranty. Once there is a trouble within one year, professional engineers and sales will be promptly appointed to help.
Induction Heater Application
Induction Heater After service
Q: Why choose GuangYuan Company?
A: We are manufacture which had in this filed for nearly 20 years.No matter quality,
price,service,delivery time,we all have large advantage.
Q:How to choose suiteble machine?
A:You can tell us your application,need forging,hardening,welding,melting or other,
pass me workpiece material & size,Temperature requirement and heating time requirement.
Then we will recommend fit machine for you reference.
Q:How about the machine payment term&delivery time&Shipping term?
A: Our company payment term accept T/T,Western Union,L/C and so on.Small machine delivery
time is 3~7 workdays.Big machine delivery time 15~25 workdays.Shipping term accept EXW,FOB,
CIF and so on.
Q:How about the machine warranty?
A:Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free.
