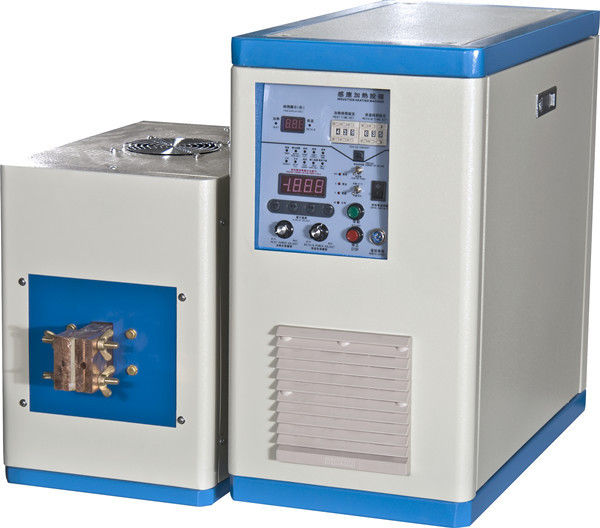

Ultra high frequency induction furnace quenching Heat treatment machine , CE SGS ROHS

Ultra high frequency induction furnace quenching Heat treatment machine , CE SGS ROHS
Ultra high frequency induction furnace quenching Heat treatment machine , CE SGS ROHS

Large Image :  Ultra high frequency induction furnace quenching Heat treatment machine , CE SGS ROHS

Product Details:
Place of Origin: China
Brand Name: GY
Certification: CE, SGS , ROHS
Model Number: GYH-20AB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden box
Delivery Time: Depend on the order and destination
Payment Terms: TT
Supply Ability: 500set/month

Ultra high frequency induction furnace quenching Heat treatment machine , CE SGS ROHS

Description
High Light:

induction heating device

,

induction heating apparatus

ROHS Approved 20KW Ultrahigh Frequency Induction Heating Equipment For Hot Fitting



Quick Detail:

Name

ROHS Approved 20KW Ultrahigh Frequency Induction Heating Equipment For Hot Fitting

Application

Hot forging, hot fitting, smelting, surface quench, welding, annealing

Work power

360V-520V

Out power

20KW

Product size

main: 560*260*560mm

transformer: 390*260*370mm

Certificate

CE , SGS , ROHS





Specification



Model

GYH-20AB (Three phase)

Work power

360V-520V

Maximum input current

30A

Output power

20KW

Fluctuating frequency

50-250KHZ

The flow rate of cooling water

0.2Mpa,  6L/min

Water temperature protection point

 40C

Product size

main: 560×260×560 mm

transformer:390*260*370mm

Net weight

main: 28kgs

transformer: 16kgs





Major Features



  1. 20KW Three phase Ultrahigh Frequency Induction Heating Equipment  adopts Soft-switch ultrahigh frequency technology and two poles closed loop control technology; and our company fully owns the independent intellectual property rights

  2. Fluctuating frequency can be 100K-1.5MHZ, control the depth of surface quenching, which can totally replace the high frequency of vacuum tube.

  3. 20KW Three phase Ultrahigh Frequency Induction Heating Equipment can continuously work for 24 hours, and 100% duty cycle.

  4. Parts of power devices are all from well-know brand products

  5. Ultra-small size and weight; High efficiency, energy saving and environmental protection with safety.





Major Scope of Application



  1. Quench for shaft, gear and inner hole of mold, quenching depth can be within 2mm.

  2. Carbon steel and stainless steel screw coating

  3. Continuously quench for saw blade, anneal and quench fro stainless steel, alloy steel thread.

  4. Welding for hard alloy saw blade, reamer, communication cable joint, and filter capacitor.

  5. Welding for joint of metal tube, and continuous welding of stop valve.





Operating Principle



Frequency conversion electromagnetic induction heating or induction heating for short is a method for heating metal materials by converting power frequency power supply into that of specific range based on the principle of electromagnetic induction. It is mainly applicable to the metal hot working, heat treatment, welding and melting. This type of heating technique is also applicable to packing industry (such as sealing of aluminum foil used in medicine and food industry), semiconductor material (such as extruded monocrystalline silicon and heated affixing metal parts for auto glass).

Basic components of induction heating system include induction coil, AC power source and work pieces. Induction coil can be fabricated into different shapes as per different heated objects. The coil is connected with the power source providing alternating current for coil. The alternating current possessed by the coil can create a alternating magnetic field passing through the work pieces to produce eddy flow as required by heating.





Advantages of Induction Heating Equipment



1. Fast heating: the minimum rate of heating is less than 1 second (rate of heating is available for adjustment and control).

2. Wide coverage of heating: it can be used to heat various metal parts (replace removable induction coil as per different operating switches).

3. Easy installation: it can be used once it is connected with power source, induction coil as well as water supply pipe and rising pipe; it is small in size and light in weight.

4. Easy operation: you can learn to operate it within several minutes.

5. Fast start-up: it can be started to perform heating operation on condition that water and power supply is available.

6. Low power consumption: As compared with conventional vacuum tube high frequency equipments, it can save the power by approximately 70%. The smaller the size of the work piece is, the lower power consumption would be.

7. High effectiveness: it has such features as uniform heating (it is applicable to adjust the spacing of the induction coil to ensure the appropriate temperature as required by each part of work piece), fast warming and limited oxic horizon, and can guard against any waste after annealing.

8. Comprehensive protection: it has such functions as overpressure, over-current, overheat and water shortage alarm indications as well as automatic control and protection.

9. Controllable temperature: it is applicable to control the temperature for heating work pieces as per the preset heating time, and thereby control the heating temperature at a certain technical point.

10. Comprehensive full load design: it can work continuously for 24 hours.

11. Small size and light weight: it has a weight of only several dozens of kilograms, of which, the limited floor space can effectively save the workshop space.

12. Elimination of high voltage: it requires no step-up transformer which may produce approximately ten thousand voltage, and thus can ensure the maximum safety.
