Metal Shaft Induction Heating Equipment For Hardening / Quenching

Metal Shaft Induction Heating Equipment For Hardening / Quenching
Metal Shaft Induction Heating Equipment For Hardening / Quenching

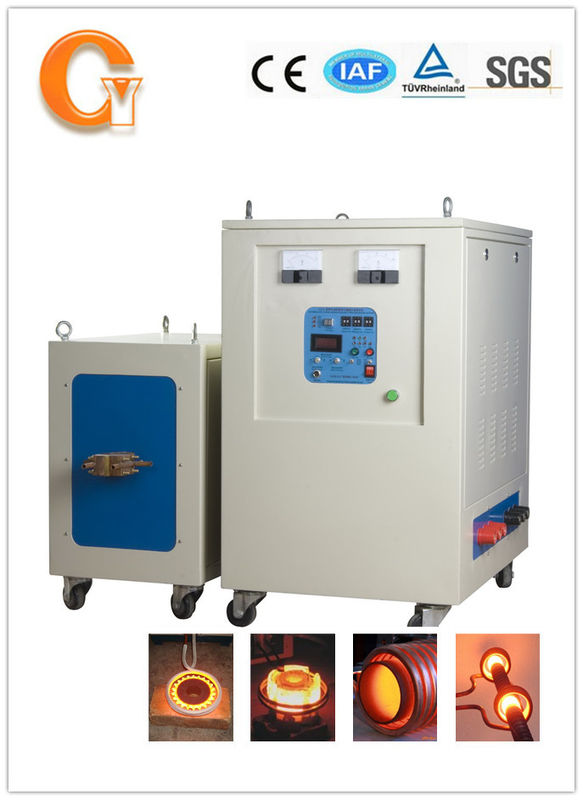

Large Image :  Metal Shaft Induction Heating Equipment For Hardening / Quenching

Product Details:
Place of Origin: China
Brand Name: GY
Certification: CE, ROHS, SGS
Model Number: GYS-100AB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500set/month

Metal Shaft Induction Heating Equipment For Hardening / Quenching

Description
High Light:

induction heating device

,

induction heating apparatus

Metal Shaft Induction Heating Equipment For Hardening / Quenching





Quick Details



Place of Origin: Guangdong, China(Mainlan)

Brand Name: GY

Model Number:GY-40AB

After-sales Service Provided: Enigneers available to service machinery overseas

Input power: Three phase 340V-430V

Input current: 41A

Output current:200-1800A





Specification




Model  GYS-100AB (Three phase)
Work power  340V-430V
Maximum input current   150A
Output power   100KW
Fluctuating frequency  20-50khz
Output current   400-4000A
The flow rate of cooling water:  0.08-0.16Mpa 10L/Min
Water temperature protection point   50C
Product size   main : 790x695x1060mm
transformer : 865x420x650mm
Net weight   main : 123kg
transformer : 84kg



Applications:



    It can forging all kinds steel production.

  1.     All kinds of standard workpiece,fasteners,machinary parts,hardware tools,straight shank twist drill forging.
  2.    Metal material heating and forging,such as steel pipe heating,iron wire,steel wire heating to make bolts and nuts
  3.    Stainless steel workpiece forging.


    Heat treating
     Various kind of automobile parts,motorcycle parts,hardware tools,gears,chaim wheels,and other machine attachments quenching for parts or whole body.




   Through heating
    Small modules part or whole though heating,twist drills heating upsetting and forging.




   Braze welding
   Many lathe tool,drill bit,knives,saw bit,saw teeth,steel pipe,copper pipesbraze welding.




   Melting
   Gold,silver,copper,steel,aluminous and other metals vacuum smelting,foudry,or evaporating plating.


   Other fields
   Semi coductor single crystal upspring,heating fitting in,heat seal,powder applicating,embedding plastic to metal,etc.



Advantage of superaudio frequency induction quenching equipment:

  1.     Power saving than tube saving 30%, 20% energy saving than SCR frequency.
  2.    Stable performance, complete protection, no worries.
  3.    Heating speed oxide layer small deformation.
  4.    Less environmental pollution and noise pollution.
  5.    Simple installation , just connect the power and water, and 10 minutes to complete.
  6.    Adaptable and can be heated to a wide range of workpiece.



Main characteristics

  1. Adoping MOSFGT and IGBT inverting device, tracking frequency automaticall
  2. High frequency, heated quickly, its powei consumption is only 20%~30% of eletronic tube induction heating machine and other heating style.
  3. Security and reliability, the equipments have the secure voltage and it's secure to operate
  4. Manual, automatic regulating automatically, it can protect itself from over voltage, over current, lack of water, phase fail, over hot, etc
  5. It has no open-fire, noise and pollution, be suit for the environmental protection and fire, improve the image of the company
  6. Recommend usage: Weld, forging, hot cooperate, melting, quenching, anneat etc







Metal Shaft Induction Heating Equipment For Hardening / Quenching 0
