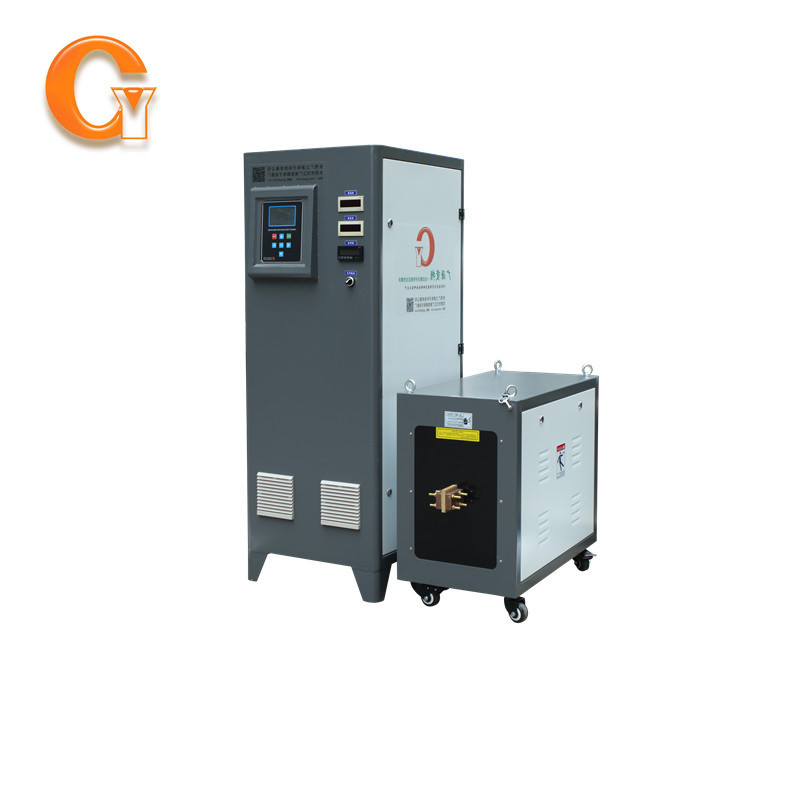

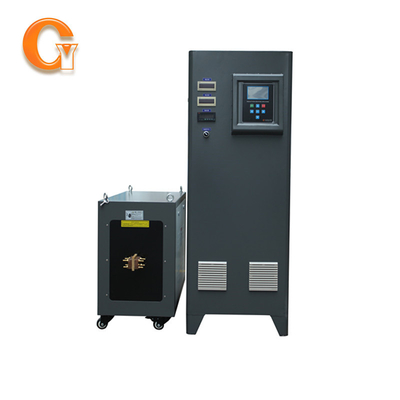

380V 3phase Industrial Induction Heating Equipment 50KHZ For Valves Forging

380V 3phase Industrial Induction Heating Equipment 50KHZ For Valves Forging
380V 3phase Industrial Induction Heating Equipment 50KHZ For Valves Forging
380V 3phase Industrial Induction Heating Equipment 50KHZ For Valves Forging 380V 3phase Industrial Induction Heating Equipment 50KHZ For Valves Forging 380V 3phase Industrial Induction Heating Equipment 50KHZ For Valves Forging 380V 3phase Industrial Induction Heating Equipment 50KHZ For Valves Forging 380V 3phase Industrial Induction Heating Equipment 50KHZ For Valves Forging

Large Image :  380V 3phase Industrial Induction Heating Equipment 50KHZ For Valves Forging

Product Details:
Place of Origin: CHINA
Brand Name: GuangYuan
Certification: CE,FCC,ROHS
Model Number: GYSQ-TC-120AB
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Packaging Details: plywood boxes packing
Delivery Time: 7~15days
Payment Terms: T/T, Western Union
Supply Ability: 300SET per month

380V 3phase Industrial Induction Heating Equipment 50KHZ For Valves Forging

Description
Control System: IGBT Application: Crankshaft Heating
Heating Material: Metals Cooling: Water
Duty Cycle: 100% Work Principle: Electromagnetic Induction Heating
Frequency: 10~50KHZ HS CODE: 85144000
Work Power: 380V 3phase Warranty: One Year Warranty
High Light:

380V Industrial Induction Heating Equipment

,

50KHZ Industrial Induction Heating Equipment

,

Valves Forging Induction Heating Equipment

Fast Heating Industrial Induction Heating Equipment For Valves Forging


Induction Hardening Machine,Induction Hardening Machine price,Induction Hardening Machine equipment,Induction Hardening Machine manufacture,Induction Hardening Machine companies.Induction Hardening Machine for sale

What is induction heating?



Induction heating is a fast,efficient,precise and repeatable heat treatment method for heating metals or other electrically-conductive material.Material is a metal such as steel,iron,brass,aluminum,alloy,copper,stainless steel,tungsten,nickel,precious metals,silver,zinc,gold and etc.or be semiconductor such as silicon carbide,carbon or graphite.



Induction Heating Machine Equipment GYSQ-TC-120AB Parameter


Model GYSQ-TC -120AB (Three phase)
work power 340V-430V
Maximum input current 180A
Output power 120KW
fluctuating frequency 10-50khz
output current 400-4000A
the flow rate of cooling water 0.08-0.16Mpa 10L/Min
water temperature protection point 50C
product size main : 770x550x1510mm
transformer : 870x430x750 mm
net weight main : 150gks
transformer : 120kgs


Delivery Time: within 7 workdays.
Shipping Term:By sea,By air,by express.


Extra accessories accept choose


1>Chiller
2>Customer design Coil
3>Infrared Thermometer
4>Back-up Electronic Boards
5>Forging Furnace,Melting Furnace,Hardening Fixture



Induction Heater Power Require depends on following factors :
» Mass of work piece » Material properties of work piece
» Temperature increase you require » Heating time require
» Effectiveness of coil design » Comprehensive full load design
» Any heat loss during heating process



How does induction heating Working?



Induction heating is the process of heating an electrically conducting object (usually a metal) by electromagnetic induction, where eddy currents (also called Foucault currents) are generated within the metal and resistance leads to Joule heating of the metal.

In a basic induction heating setup shown at right, a solid state RF power supply sends an AC current through an inductor (often a copper coil),and the part to be heated (the workpiece) is placed inside the inductor. The inductor serves as the transformer primary and the part to be heated becomes a short circuit secondary. When a metal part is placed within the inductor and enters the magnetic field, circulating eddy currents are induced within the part.



Induction Heating Machine Application Filed


Induction Welding
Induction Annealing
Induction Pre-heating
Induction Bolt Heating
Induction Brazing
Induction curing bonding
Induction straightening
Use induction heating to remove paint and coating

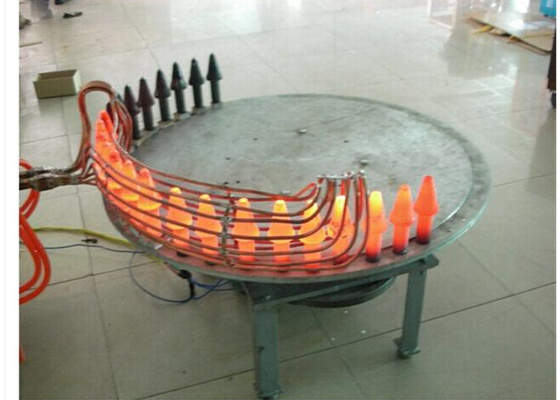

Forging
Melting





Induction heating Application:

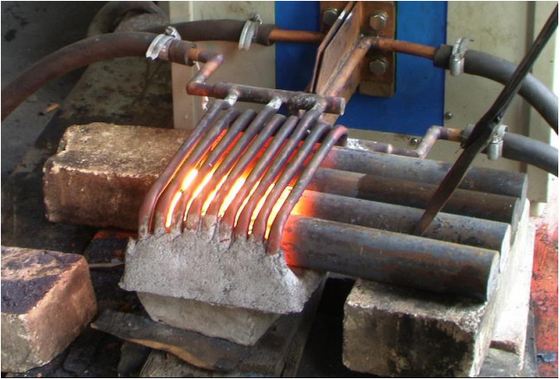

Forging(Bar,flat plate,bar end heating,pipe ends,bar end heating)

Pre-heating(Pipe,steel wire,stainless steel wire)

Brazing(Saw blades,carbide tools,cooper tube,aluminum part,drilling tools,Pan)

Annealing(Steel pipe,golf ball head,brass lock,aluminum pan)

Hardening(Gear,shaft,pipe,bearing,pump fitting,steel plate,roller)

shrink fitting(motor,pipe)

Melting(Iron,steel,brass,aluminum,silver,zinc)



Induction heating Machine advantages:

Energy saving
No physical contact and less maintenance.
Minimizes the time of heating. Therefore it reduce oxidation and decrease production time.
Easier cleaning processes afterwards
Reduces the heat affected area
Reduced risk causing a more pleasant work environment than conventional methods.
Possibility to automate welding processes which leads to an easier implementing and repetitive process





380V 3phase Industrial Induction Heating Equipment 50KHZ For Valves Forging 0



380V 3phase Industrial Induction Heating Equipment 50KHZ For Valves Forging 1





380V 3phase Industrial Induction Heating Equipment 50KHZ For Valves Forging 2
 380V 3phase Industrial Induction Heating Equipment 50KHZ For Valves Forging 3
380V 3phase Industrial Induction Heating Equipment 50KHZ For Valves Forging 4

Induction Heater After service

Q: Why choose GuangYuan Company?
A: We are manufacture which had in this filed for nearly 20 years.No matter quality,

price,service,delivery time,we all have large advantage.
Q:How to choose suiteble machine?
A:You can tell us your application,need forging,hardening,welding,melting or other,

pass me workpiece material & size,Temperature requirement and heating time requirement.
Then we will recommend fit machine for you reference.
Q:How about the machine payment term&delivery time&Shipping term?
A: Our company payment term accept T/T,Western Union,L/C and so on.Small machine delivery

time is 3~7 workdays.Big machine delivery time 15~25 workdays.Shipping term accept EXW,FOB,
CIF and so on.
Q:How about the machine warranty?
A:Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free.

380V 3phase Industrial Induction Heating Equipment 50KHZ For Valves Forging 5
